Front Display And Control Head, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal. Note The Following:

NOTE:

If a new Front A/C Display Control Head -E87- with a Climatronic Control Module -J255- is installed, the replace control module function and a basic setting must be performed in the Guided Fault Finding or the Guided Functions.

When installing the Front A/C Display Control Head -E87-, it must be ensured that pressure is not exerted on the surfaces of the temperature regulator and the display while inserting. Excessive pressure can result in damage to the Front A/C Display Control Head -E87-.

-- Engage the Front A/C Display Control Head -E87- into the frame by pressing on the indicated locations -arrows-. Ensure that no pressure is exerted on display -1- and regulator -2-.

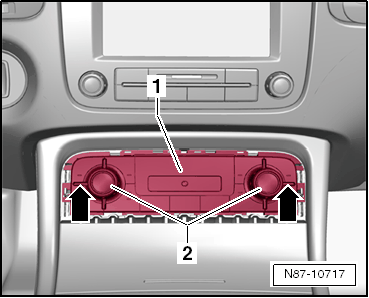

Fig 1: Engaging Front A/C Display Control Head In Frame By Pressing At -Arrows- (Exert No Pressure On Display -1- & Regulator -2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clip in the Front A/C Display Control Head -E87- trim.
