Passenger Compartment Forced Air Extraction, Checking
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The stale air escapes through the vent openings in the luggage compartment trim.
If the ventilation is to function properly, the ventilation openings must not be covered.
The ventilation frames can be found on the right and left, respectively, in the side parts behind the bumper.
CHECKING
-- Remove the rear bumper. Refer to BUMPER COVER, REMOVING AND INSTALLING .

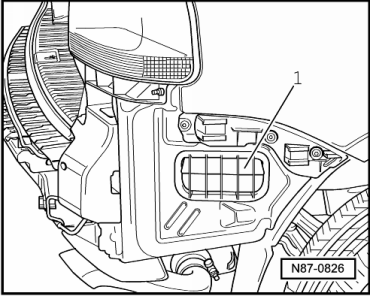

-- The sealing lips in the ventilation frame -1- must be free to move and close.
