Sunlight Photo Sensor -G107-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Completely detach the instrument panel -1- and pull it forward slightly. Refer to Instrument Panel .

-- Use the :3409 to unclip the Sunlight Photo Sensor -G107- -2- on the right and left -arrows-.

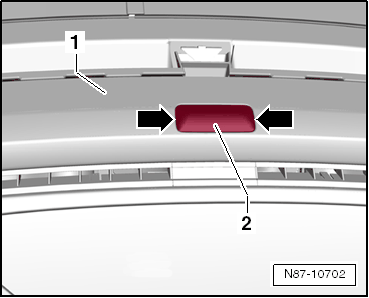

Fig 1: Locating Clips (Right And Left Arrows) For Sunlight Photo Sensor -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Sunlight Photo Sensor -G107- -2-.
