Left FOOTWELL Vent Temperature Sensor -G261-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower instrument panel trim panel. Refer to Instrument Panel .

-- Disconnect the connector from the Left Footwell Vent Temperature Sensor -G261- -1-.

-- Turn the Left Footwell Vent Temperature Sensor -G261- -1- approximately 90° direction of -arrow- and then remove it from the footwell vent -2-.

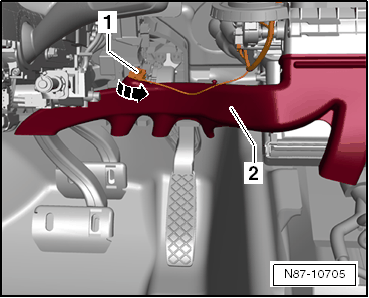

Fig 1: Rotating Left Footwell Vent Temperature Sensor -1- ~90Degrees In -Direction Of Arrow- And Out Of Footwell Vent -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
