Air Quality Sensor -G238-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right plenum chamber cover -2-. Refer to Plenum Chamber Bulkhead .

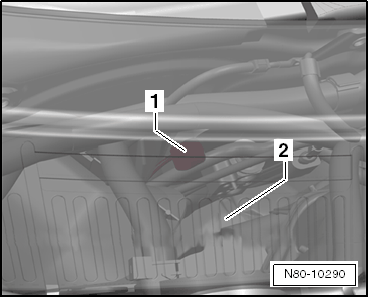

Fig 1: Unclip Air Quality Sensor -1- From The Bracket On The Plenum Chamber Cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Air Quality Sensor -G238-.

-- Unclip the Air Quality Sensor -G238- -1- from the bracket on the plenum chamber cover.
