Drive Plate With Overload Protection, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bolts -A-.

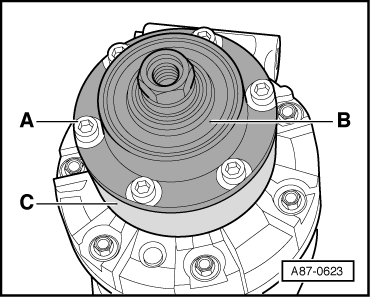

Fig 1: Identifying Bolts, Overload Protection -B-, And Drive Plate -C-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Use a commercially available band wrench (with webbed band) to counterhold at drive plate -C-.
