Drive Plate With Overload Protection, Checking Run-Out And Adjusting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

-- Clean the drive plate flange -A-.

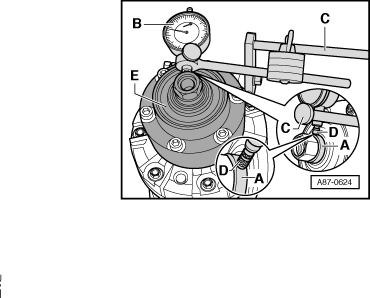

Fig 1: Checking/Adjusting Run-Out Of Drive Plate With Overload Protection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure a dial gauge -B- using a dial gauge holder -C- (for example, using :VW387 ) onto the A/C compressor.

-- Set probe of dial gauge -D- on flange of drive plate -A- with a pre-tension of approximately 1.0 mm.

-- Turn the A/C compressor power unit -E- a few turns.

Specified Value

Run-out deviation is less than 0.21 mm (run-out of dial indicator, difference between smallest and largest measured value 0.2 mm maximum).

-- If the run-out deviation is greater than 0.2 mm, then loosen the bolts on the drive plate and readjust the drive plate. Refer to DRIVE PLATE WITH OVERLOAD PROTECTION, REMOVING AND INSTALLING .
