Steel Spring Shock Absorber, Repairing: Notes

Special Tools And Workshop Equipment Required

• Socket:3165
• Press Piece - 28 x 210mm:VW420
• Shock Absorber Set:T10001
• Spring Compressor Kit:VAG1752
• Spring Compressor Kit - Spring Tensioner:VAG1752/1
• Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/5
• Spring Compressor Kit - Strut Clamping Block:VAG1752/20
• Torque Wrench 1332 40-200 Nm :VAG1332
• Kukko 45-2
• Ratchet (Commercially Available)

-- Remove the steel spring shock absorber. Refer to STEEL SPRING SHOCK ABSORBER, REMOVING AND INSTALLING .

Disassemble The Steel Spring Shock Absorber

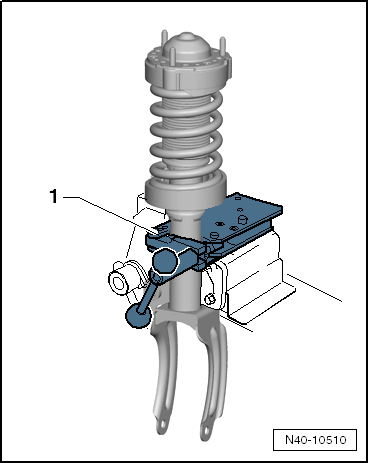

-- Clamp the steel spring shock absorber.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Spring Compressor Kit - Strut Clamping Block:VAG1752/20

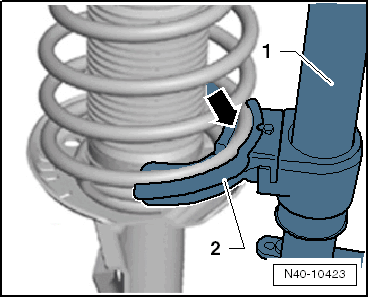

-- Make sure the coil spring -arrow- fits correctly in the tool.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Spring Compressor Kit - Spring Tensioner:VAG1752/1
2. Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/4

-- Remove the plug -item  ) OVERVIEW - FRONT STEEL SPRING SHOCK ABSORBER - SEALING PLUGS.

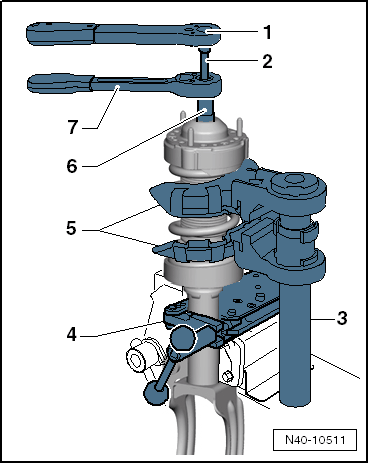

-- Set up the tools as shown in the figure.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Ratchet (Commercially Available)
2. Shock Absorber Set - Extension SW7:T10001/8
3. Spring Compressor Kit - Spring Tensioner:VAG1752/1
4. Spring Compressor Kit - Strut Clamping Block:VAG1752/20
5. Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/4
6. Shock Absorber Set - Socket:T10001/5
7. Shock Absorber Set - Reversible Ratchet:T10001/11

-- Pretension the coil spring until the upper support bearing is free.

-- Remove hex nut from piston rod.

-- Remove individual parts of the steel spring shock absorber.

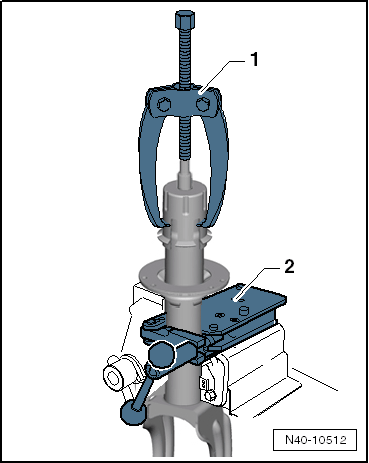

-- Set up the tools as shown in the figure.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Kukko 45-2
2. Spring Compressor Kit - Strut Clamping Block:VAG1752/20

-- Remove the stop cap from the shock absorber

-- Drive the spring plate off of the shock absorber.

Assemble the Steel Spring Shock Absorber

Install In Reverse Order Of Removal While Noting The Following:

-- Drive the spring plate off of the shock absorber.

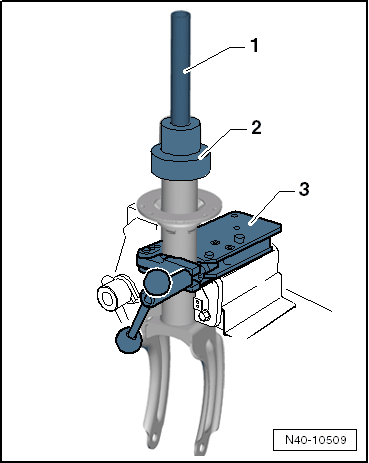

-- Set up the tools as shown in the figure.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Press Piece - 28 x 210mm:VW420
2. Socket:3165
3. Spring Compressor Kit - Strut Clamping Block:VAG1752/20

-- Drive the stop cap off of the shock absorber.

-- Make sure the coil spring -arrow- fits correctly in the tool.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Spring Compressor Kit - Spring Tensioner:VAG1752/1
2. Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/4
