Install The Lower Spring Support

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

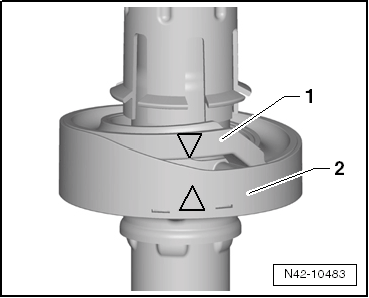

-- INSTALL THE LOWER SPRING SUPPORT -1- properly in the lower spring washer -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The markings of the lower spring support and the lower spring washer must be aligned.
