Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box lower cover. Refer to REMOVAL , Glove Box.
Remove the lower inner trim of passenger's side. Refer to REMOVAL , Lower Inner Trim
Turn over the floor mat of passenger's seat.
Remove the protect cover.

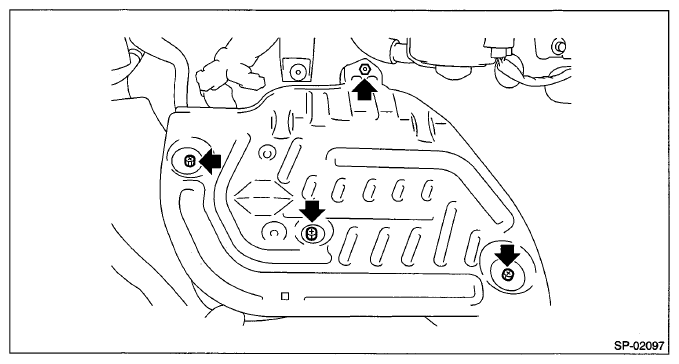

Fig 1: Locating Protect Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.

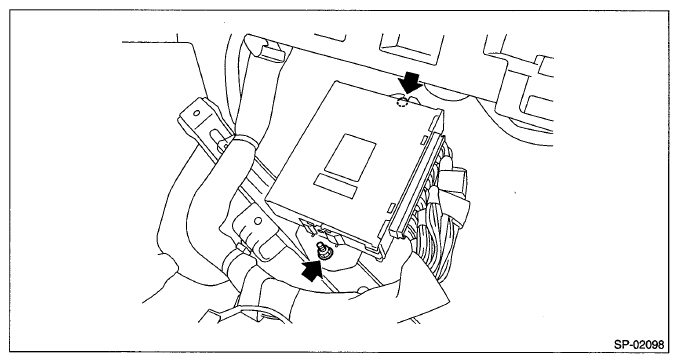

Fig 2: Locating ECM Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Turn the ignition switch to ON. (engine OFF)

Measure the voltage between ECM connector terminals.

Main sensor side

Fig 3: Measuring Voltage Between ECM Connector Terminals (Main Sensor Side)

Courtesy of SUBARU OF AMERICA, INC.

Sub sensor side

Fig 4: Measuring Voltage Between ECM Connector Terminals (Sub Sensor Side)

Courtesy of SUBARU OF AMERICA, INC.

TERMINAL REFERENCE CHART

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (Full closed)	23 (+) and 29 (-)	0.4 - 1.0 V
Main	Depressed (Full opened)	23 (+) and 29 (-)	2.4 - 3.7 V
Sub	Not depressed (Full closed)	31 (+) and 30 (-)	0.3 - 1.1 V
Sub	Depressed (Full opened)	31 (+) and 30 (-)	2.3 - 3.8 V

After inspection, install the related parts in the reverse order of removal.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
