Radiator, Removing, Installing And Disassembling: Disassembling

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The radiator module consists of the radiator, the condenser, the hydraulics and the transmission fluid cooler.

Conditions

The radiator module is removed. Refer to RADIATOR, REMOVING, INSTALLING AND DISASSEMBLING .

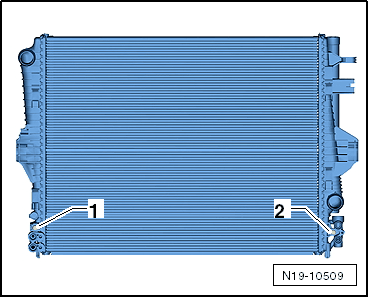

-- Remove the bolts -1 and 2-.

Fig 1: Identifying Radiator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

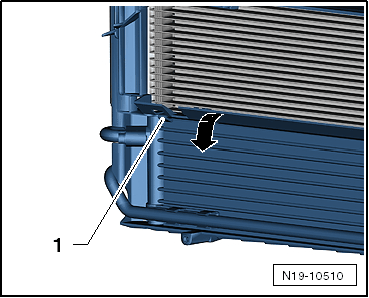

-- Turn the radiator module around. Press the retainer -1- and remove the transmission fluid cooler.

Fig 2: Press The Retainer -1- And Remove The Transmission Fluid Cooler.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

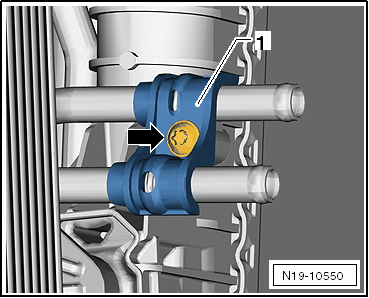

-- Remove the bolt -arrow- and the bracket -1- and then remove the hydraulic fluid cooler.

Fig 3: Identifying A/C Condenser Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

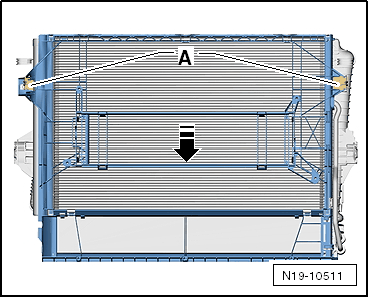

-- Remove the retainers -A-, lift the condenser slightly and remove it from the radiator in direction of -arrow-.

Fig 4: Identifying Retainers -A- And A/C Condenser

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
