Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Identifying Oil Pressure Switch Threads Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to cylinder block.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

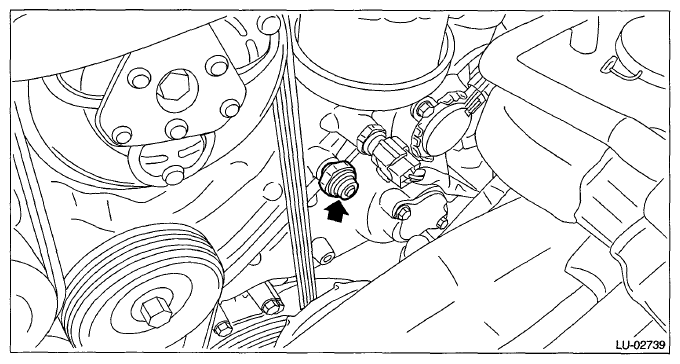

Fig 2: Locating Oil Pressure Switch Bolt
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.
NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

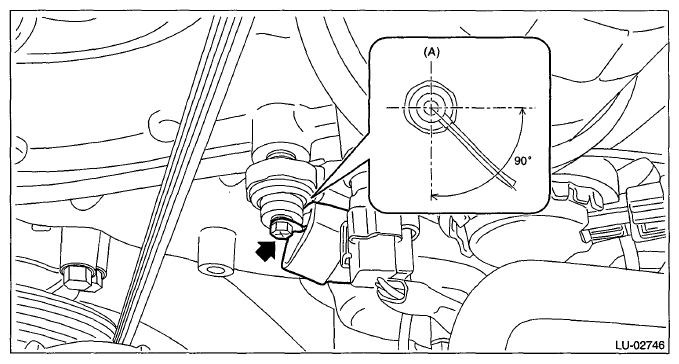

Fig 3: Locating Oil Pressure Switch Bolt Tightening Angle
Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.

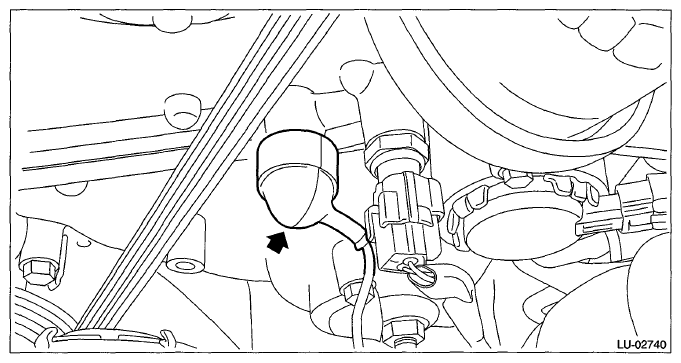

Fig 4: Locating Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal.

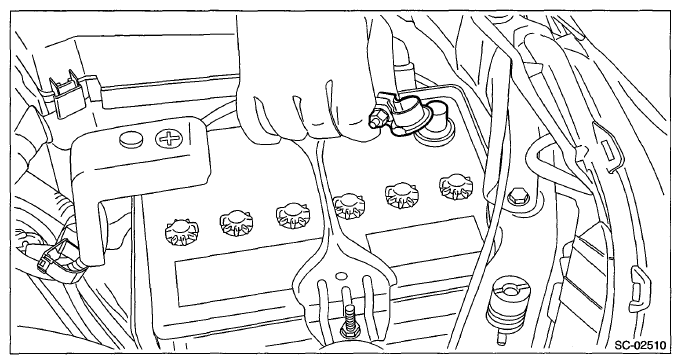

Fig 5: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
