Service Position, Performing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

In the event of damage to the lock carrier or the bumper carrier, check the Distance Regulation Control Module -J428- and Distance Regulation Control Module 2 -J850- for damage.

Information regarding the distance regulation control modules -5-. Refer to ADAPTIVE CRUISE CONTROL .

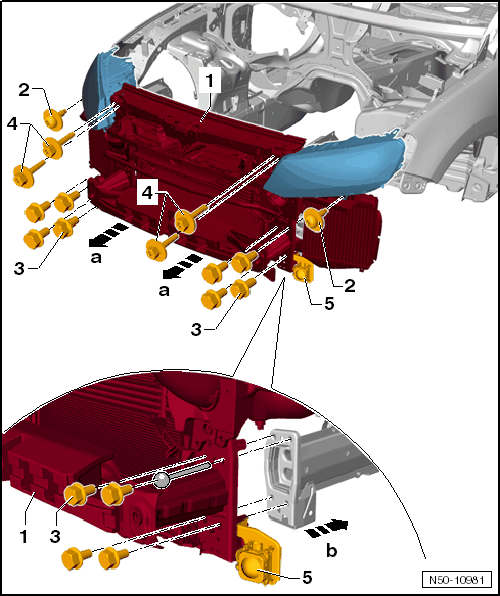

Fig 1: Identifying Attachments -1-, Bolts -2 To 4-, Lock Carrier, Guide Pins T10093 And Longitudinal Members -Arrow B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the release cable from the lock carrier. Refer to RELEASE CABLE, DISCONNECTING .

-- In vehicles with a charge air cooler, release the pressure hoses. Refer to COUPLING, UNLOCKING .

-- Remove the bolts -2 and 4-.

-- Remove the bolts -3- at the left and right longitudinal members.

-- Screw in the Guide Pins:T10093 on the left and right longitudinal members.

-- The lock carrier -1- can be pulled forward approximately 10 cm on the Lock Carrier Support Tool:3411 -arrows a-.
