Front Fender, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the fender -1- so that it is free of tension.

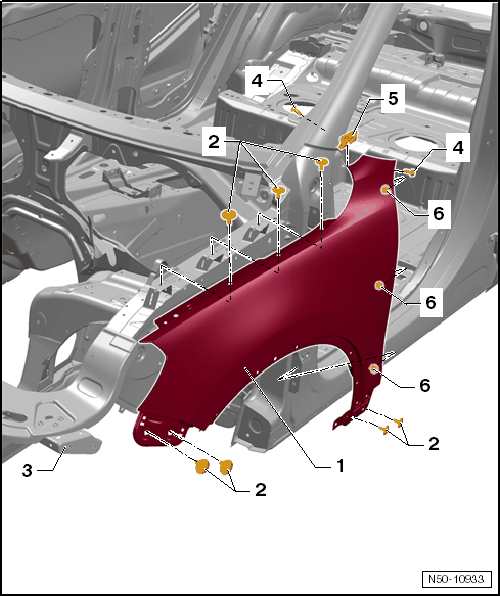

Fig 1: Identifying Fender -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the drip rail clamp -5-.

Install the fender -1- in reverse order of removal.

-- Tightening specifications for bolts -2- : 6 Nm.

-- Tightening specifications for bolts -4- : 6 Nm.

-- Tightening specifications for bolts -6- : 6 Nm.

-- Pay close attention to the parallel alignment and the gap dimensions. Refer to appropriate service information.

Install with the fender brace loosened -3-.
