Electrical Specification
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

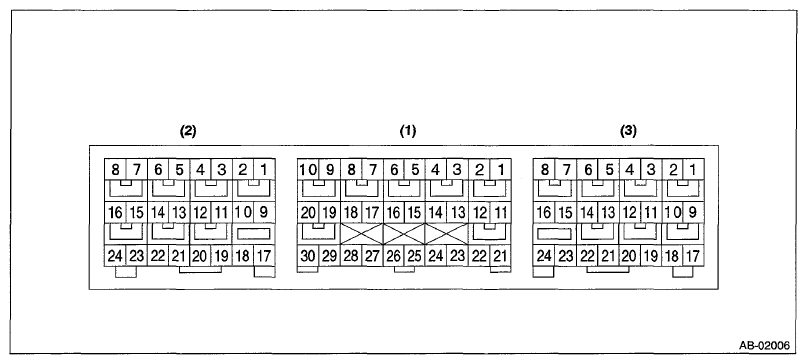

- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.
AIRBAG CONTROL MODULE TERMINALS REFERENCE CHART
| Item | Control module terminal No. | |
|---|---|---|
| Data link connector | (1) - 16 | |
| Combination meter | (1) - 11 | |
| Battery power supply | Dedicated fuse | (1) - 21 |
| Passenger's airbag module level one | + | (1) - 4 |
| - | (1) - 3 | |
| Passenger's airbag module level two | + | (1) - 1 |
| - | (1) - 2 | |
| Driver's airbag module level one | + | (1) - 5 |
| - | (1) - 6 | |
| Driver's airbag module level two | + | (1) - 8 |
| - | (1) - 7 | |
| Front sub sensor LH | + | (1) - 30 |
| - | (1) - 28 | |
| Front sub sensor RH | + | (1) - 29 |
| - | (1) - 27 | |
| Ground line (GND) | (1) - 25 | |
| (1) - 26 | ||
| Passenger's airbag OFF indicator | (1) - 17 | |
| Passenger's airbag ON indicator | (1) - 23 | |
| Passenger's seat belt warning light (integrated module) | (1) - 15 | |
| Seat belt pretensioner LH | + | (2) - 5 |
| - | (2) - 6 | |
| Side airbag sensor LH Curtain airbag sensor LH | + | (2) - 24 |
| - | (2) - 23 | |
| Side airbag module LH | + | (2) - 1 |
| - | (2) - 2 | |
| Curtain airbag module LH | + | (2) - 4 |
| - | (2) - 3 | |
| Satellite sating sensor | + | (2) - 20 |
| - | (2) - 19 | |
| Seat belt pretensioner RH | + | (3) - 4 |
| - | (3) - 3 | |
| Side airbag sensor RH Curtain airbag sensor RH | + | (3) - 17 |
| - | (3) - 18 | |
| Side airbag module RH | + | (3) - 8 |
| - | (3) - 7 | |
| Curtain airbag module RH | + | (3) - 5 |
| - | (3) - 6 | |
| Occupant detection control module | + | (3) - 6 |
| - | (3) - 24 | |
