Vehicle Positioning System Interface Control Module -J843-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

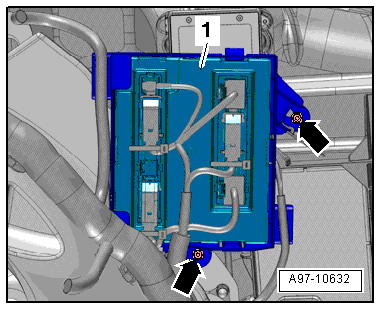

Fig 1: Identifying Comfort System Central Control Module Retaining Frame

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and disconnect the battery Ground (GND) cable. Refer to BATTERY, DISCONNECTING AND CONNECTING appropriate service information .

-- Open the right luggage compartment side trim panel cover.

-- Remove the nuts -arrows- and frame -1- with Comfort System Central Control Module -J393- and set it aside.

-- If equipped, release the retaining clips -arrows- and remove the Electronic Damping Control Module - J250- -1- from the frame.

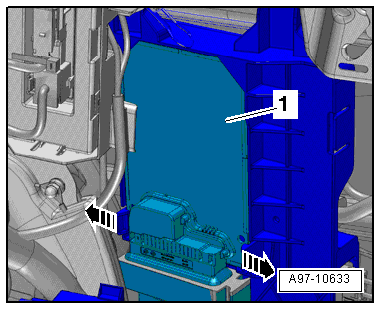

Fig 2: Removing Electronic Damping Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1 and 2- and nut -4-.

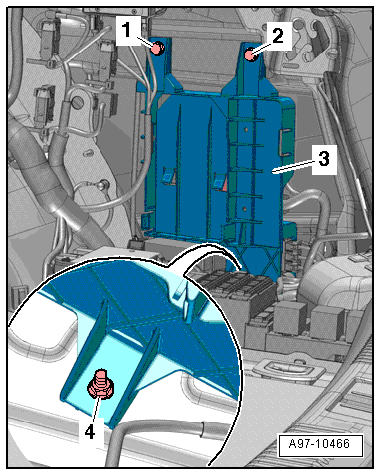

Fig 3: Identifying Frame, Bolts & Nut

Courtesy of AUDI OF AMERICA, LLC

-- Move frame -3- with control module to the side.

-- Disconnect the connector for the control module in the frame.

-- Remove the frame and control module.

-- Remove the bolts -arrows-.

Fig 4: Identifying Vehicle Positioning System Interface Control Module -J843- Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Vehicle Positioning System Interface Control Module - J843- -1-.

-- Disconnect the connectors -2, 3 and 4-.
