Comfort System Central Control Module -J393-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

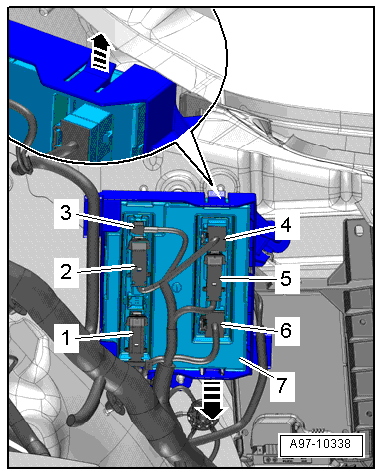

Fig 1: Removing Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the right luggage compartment side trim panel.

-- Open the clips -arrows- and remove the Comfort System Central Control Module -J393- -7- from the retainer.

-- Carefully disconnect connectors -4 and 6- and the antenna connector -3-.

-- Disconnect the connectors -1, 2 and 5-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
