Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. If equipped.

    1. Disconnect the front park aid camera electrical connector.
    2. Detach the front camera washer hose coupling, separate the washer hose retainers and remove the washer hose line.

    GFD275595Courtesy of FORD MOTOR COMPANY

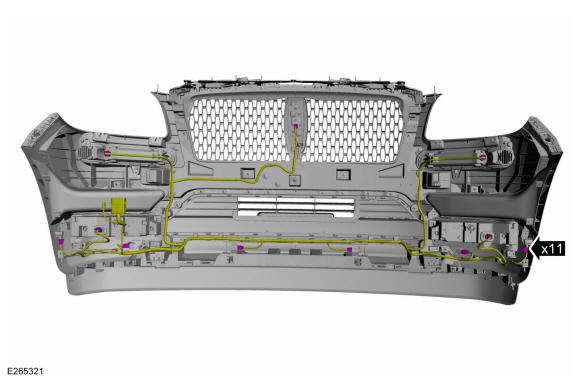

  3. Disconnect the front bumper cover wiring harness connectors.
    GFD275596Courtesy of FORD MOTOR COMPANY

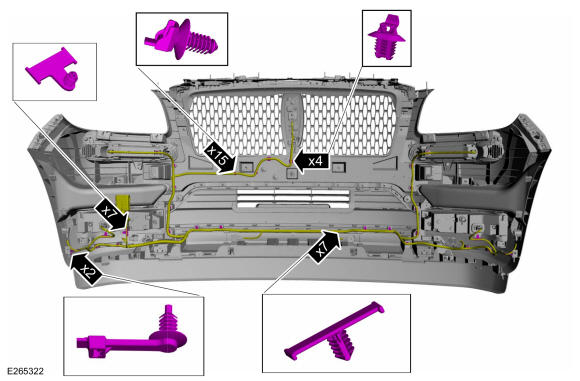

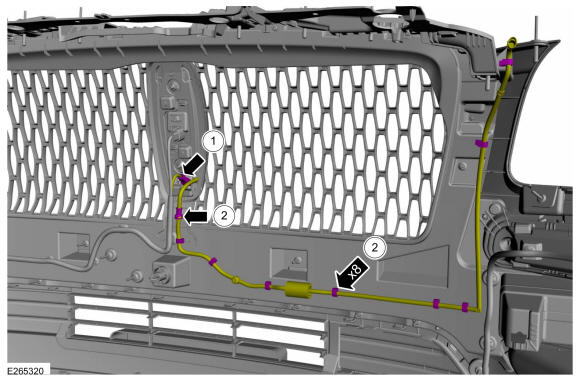

  4. Separate the harness guides, harness retainers and remove the front bumper cover harness.
    GFD275597Courtesy of FORD MOTOR COMPANY

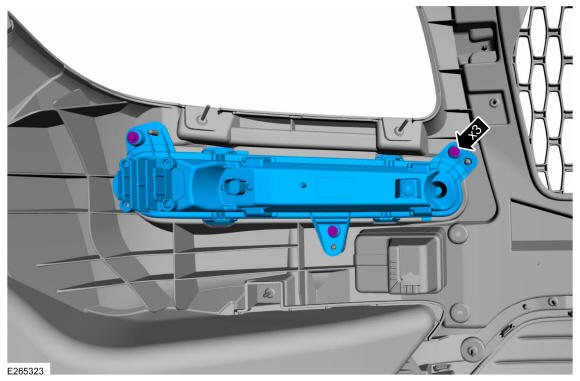

  5. On both sides. Remove the screws and the daytime running lamp.
    GFD275598Courtesy of FORD MOTOR COMPANY

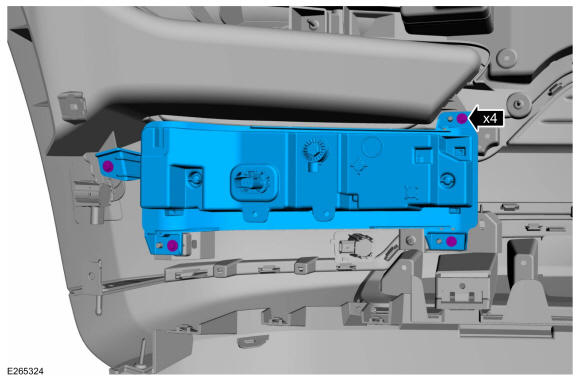

  6. On both sides. Remove the screws and the foglamp assembly.
    GFD275599Courtesy of FORD MOTOR COMPANY

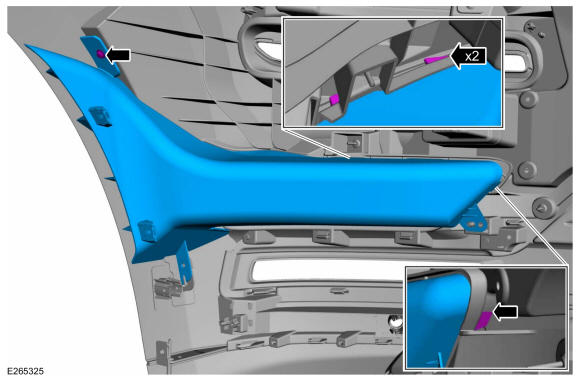

  7. On both sides. Remove the screw, release the tabs and remove the air curtain bezel.
    GFD275600Courtesy of FORD MOTOR COMPANY

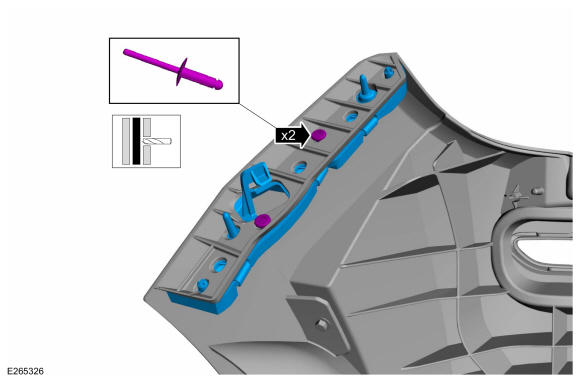

  8. On both sides. Drill the rivets and remove the front bumper cover to fender bracket.
    GFD275601Courtesy of FORD MOTOR COMPANY

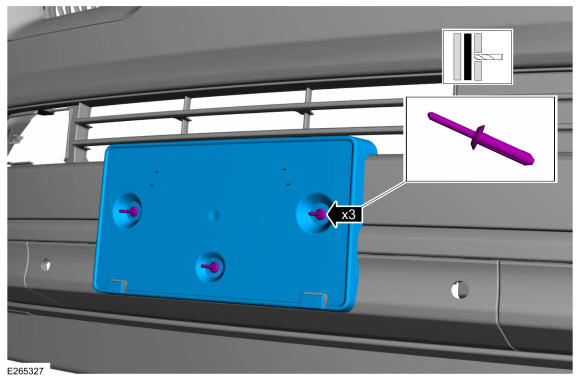

  9. If equipped. Drill the rivets and remove the license plate bracket.
    GFD275602Courtesy of FORD MOTOR COMPANY

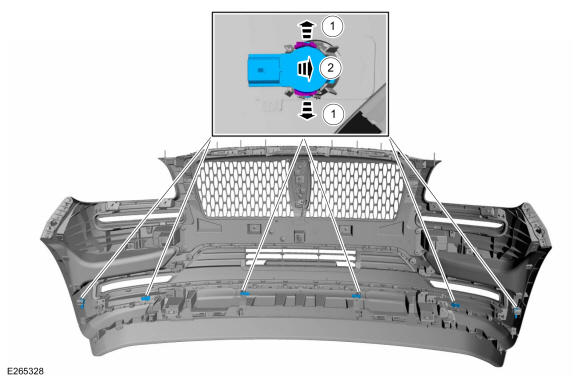

  10. Remove the front parking aid sensors and front active park assist sensors.

    1. Release the tabs.
    2. Remove the front parking aid sensors and front active park assist sensors from the bracket.

    GFD275603Courtesy of FORD MOTOR COMPANY

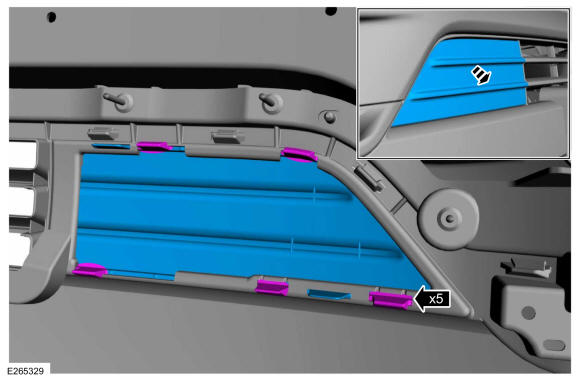

  11. Release tabs and remove the front bumper lower grille cover.
    GFD275604Courtesy of FORD MOTOR COMPANY

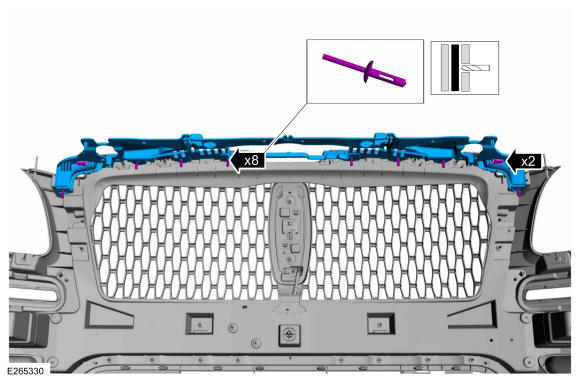

  12. Drill the rivets, release the tabs and remove the front bumper bracket cover.
    GFD275605Courtesy of FORD MOTOR COMPANY

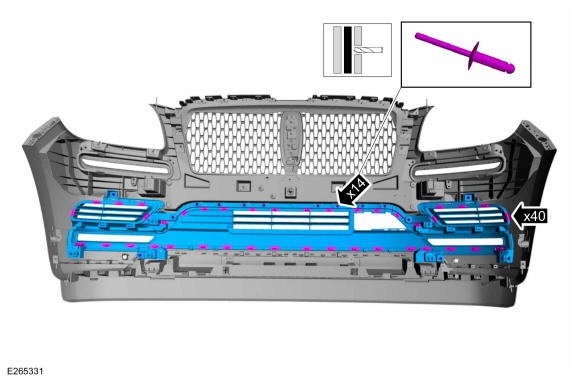

  13. Drill the rivets, release the tabs and remove the front bumper lower grille.
    GFD275606Courtesy of FORD MOTOR COMPANY

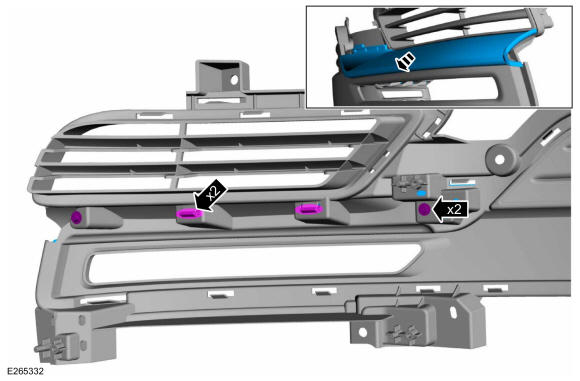

  14. On both sides. Remove the screws, release the tabs and remove the outer grille trim.
    GFD275607Courtesy of FORD MOTOR COMPANY

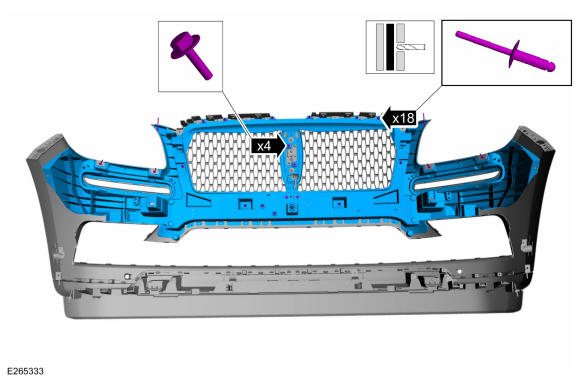

  15. Drill the rivets, remove the screws and the front bumper energy absorber.
    GFD275608Courtesy of FORD MOTOR COMPANY

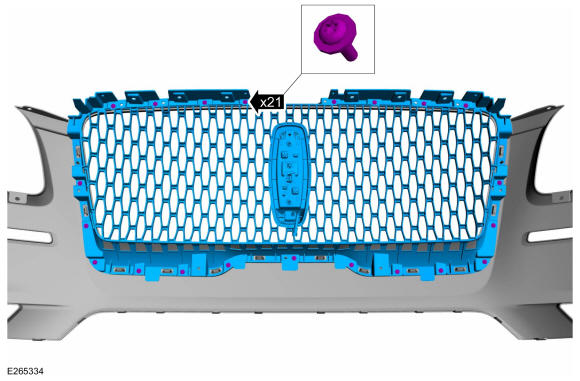

  16. Remove the screws and the radiator grille.
    GFD275609Courtesy of FORD MOTOR COMPANY

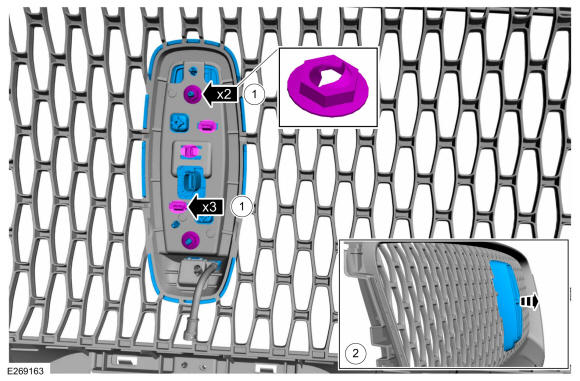

    1. Remove the speed nuts and release the tabs.
    2. Remove the radiator grille emblem housing assembly.
    GFD275610Courtesy of FORD MOTOR COMPANY

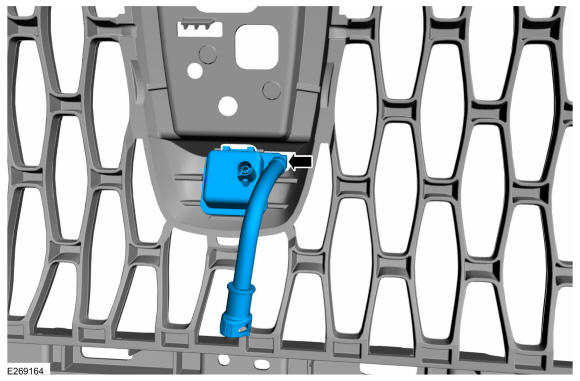

  18. Remove the front parking aid camera and washer nozzle hose assembly.
    GFD275611Courtesy of FORD MOTOR COMPANY
  19. Remove the washer nozzle hose assembly.
    GFD275612Courtesy of FORD MOTOR COMPANY

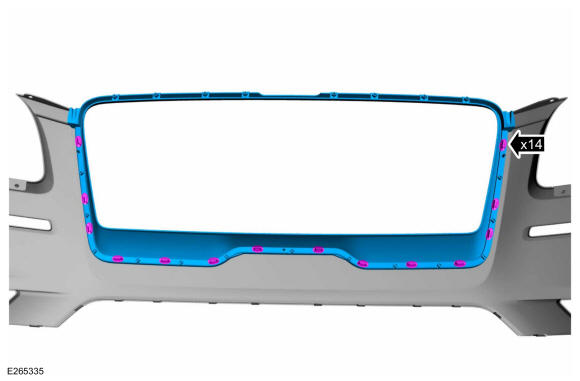

  20. Release the tabs and remove the radiator grille frame.
    GFD275613Courtesy of FORD MOTOR COMPANY

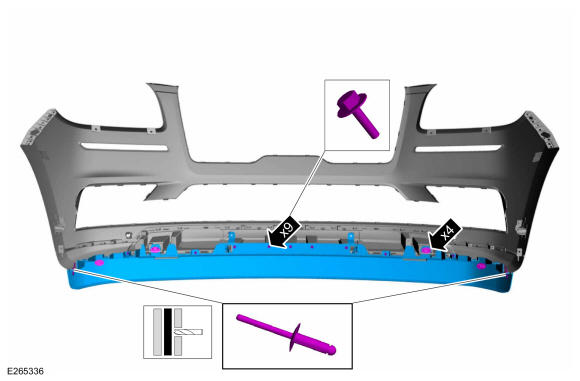

  21. Drill the rivets, remove the screws, release the tabs and remove the lower valence.
    GFD275614Courtesy of FORD MOTOR COMPANY

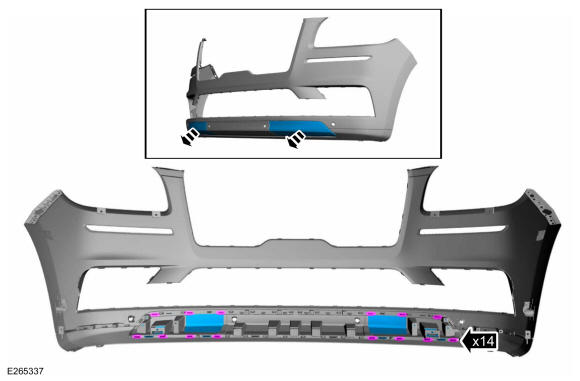

  22. Release the tabs and remove the front tow hook covers.
    GFD275615Courtesy of FORD MOTOR COMPANY
  23. Release the tabs and remove the skid plate.
    GFD275616Courtesy of FORD MOTOR COMPANY

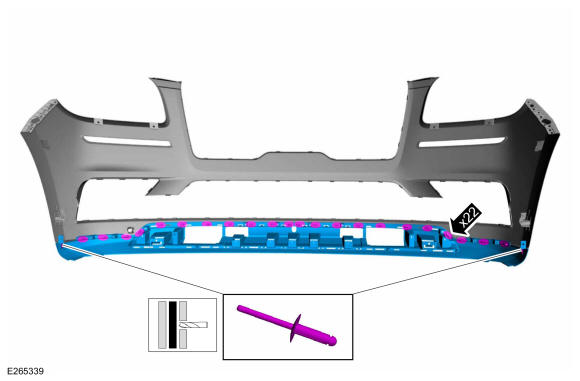

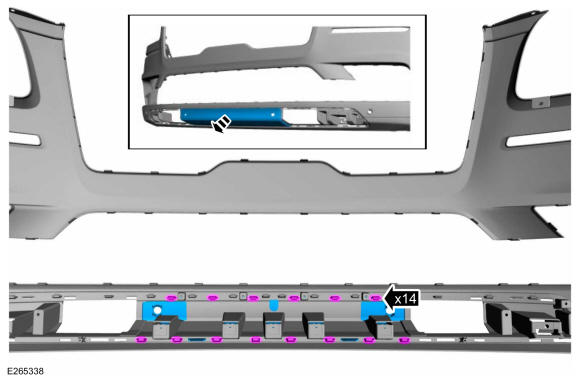

  24. Drill the rivets, release the tabs and remove the front bumper lower cover.
GFD275617Courtesy of FORD MOTOR COMPANY
