Wiper Linkage Assembly: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Tighten the wiper linkage and motor assembly bolts in the order shown in the figure.

    Torque: 71 lb.in (8 Nm)

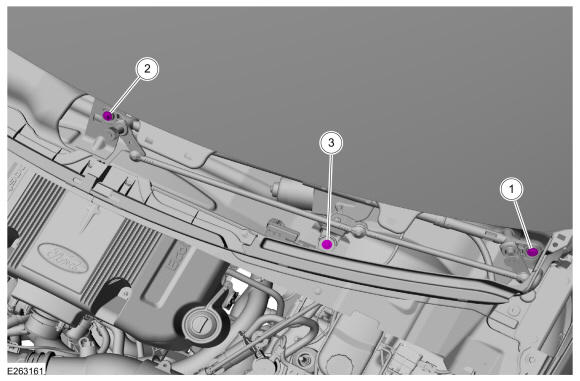

Fig 1: Wiper Linkage And Motor Assembly Bolts Tightening Sequence
GFD275517Courtesy of FORD MOTOR COMPANY
