Third Row Seat: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Short wheel base shown, long wheel base similar.

Position the liftgate opening weatherstrip aside.

Courtesy of FORD MOTOR COMPANY
Release the clips and the liftgate scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the load floor cover.

Courtesy of FORD MOTOR COMPANY
Position the load floor storage compartment cover up.

Courtesy of FORD MOTOR COMPANY
Remove the vehicle jack assembly.

Courtesy of FORD MOTOR COMPANY
Disconnect the keyless entry rear antenna electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the load floor storage compartment bolts.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the load floor storage compartment.

Courtesy of FORD MOTOR COMPANY
Disconnect the third row center seatbelt from the third row center seatbelt retractor mini-buckle.
1. Press the release button.
2. Release the third row center seatbelt.
Courtesy of FORD MOTOR COMPANY

Third row double seat

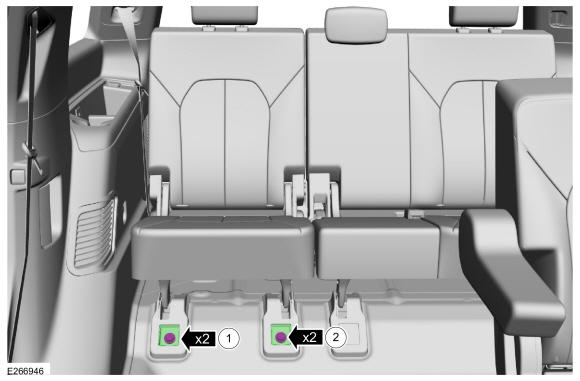

Remove the third row double seat front bolts.
1. Remove the bolt covers.
2. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

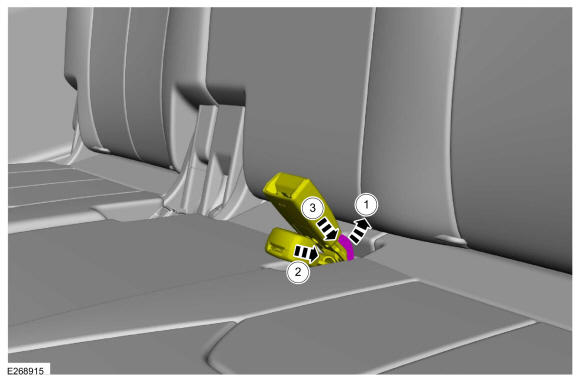

1. Pull up the elastic strap.
2. Feed the third row center seatbelt retractor mini-buckle into the seat cushion pocket.
3. Feed the third row double seat outer seatbelt buckle into the seat cushion pocket.
Courtesy of FORD MOTOR COMPANY

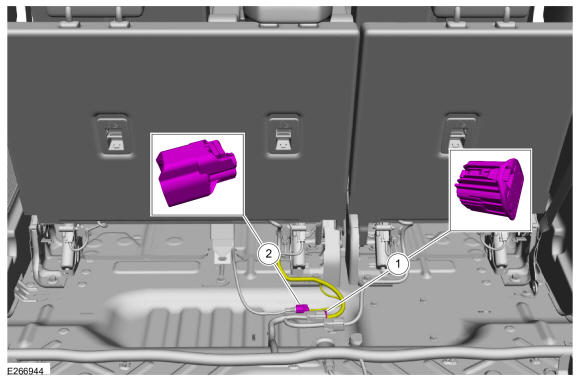

1. Disconnect the third row double seat electrical connector.
2. If equipped. Disconnect the third row double seat outer seatbelt buckle electrical connector.
Courtesy of FORD MOTOR COMPANY

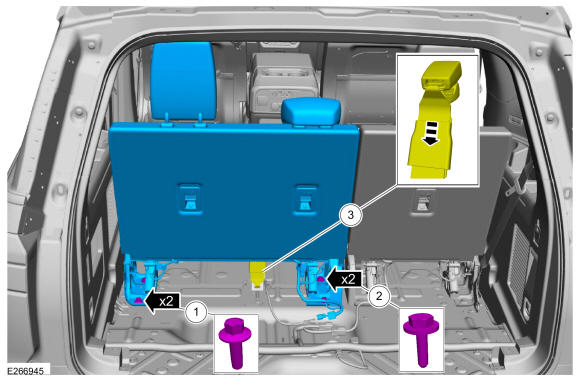

Remove the third row double seat.
1. Remove the bolts.
  Torque: 52 lb.ft (70 Nm)
2. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
3. Pull the third row double seat outer seatbelt buckle through the seat cushion.
Courtesy of FORD MOTOR COMPANY

Third row single seat
Remove the third row single seat front bolts.
1. Remove the bolt covers.
2. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

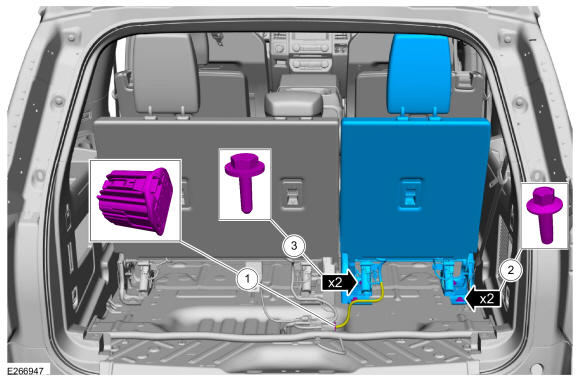

Remove the third row single seat.
1. Disconnect the electrical connector.
2. Remove the bolts.
  Torque: 52 lb.ft (70 Nm)
3. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
