Third Row Seat Head Restraint Guide Sleeve: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.

NOTE: The head restraint guide sleeves are not interchangeable The outer head restraint guide sleeves are unique from the center head restraint guide sleeves. Failure to install the correct head restraint guide sleeves at the correct position may result in component failure.

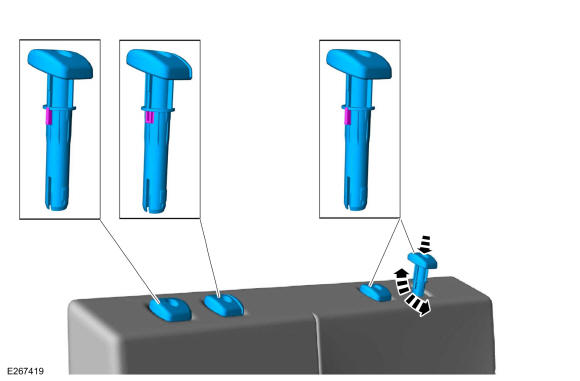

Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest trim cover. Using hang pressure, twist the head restraint guide sleeve while pushing it into the backrest frame until the tab is locked into placed.

Courtesy of FORD MOTOR COMPANY
Install the third row seat head restraint(s). Refer to: Third Row Seat Head Restraint .
