Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair. Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.
Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

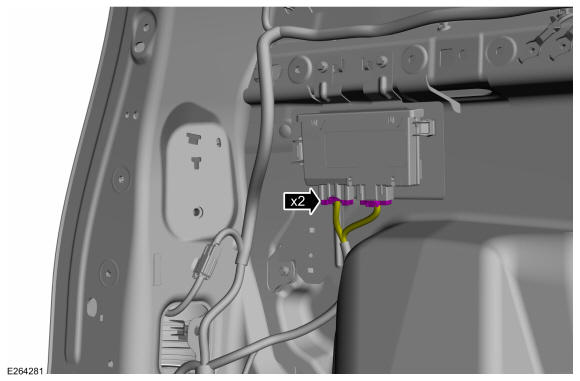

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

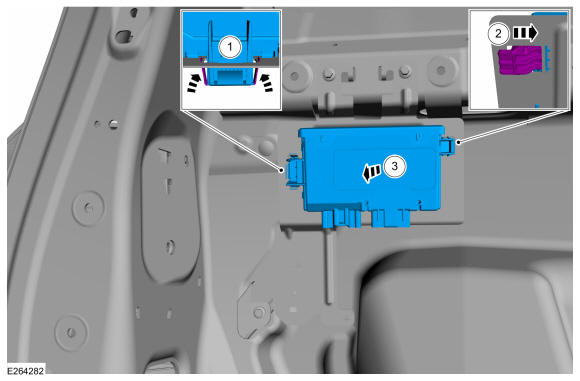

1. Release the retaining clips.
2. Slide the RGTM retaining tab from the bracket.
3. Remove the RGTM.

Courtesy of FORD MOTOR COMPANY
