Hands-Free Liftgate Actuation Module: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .

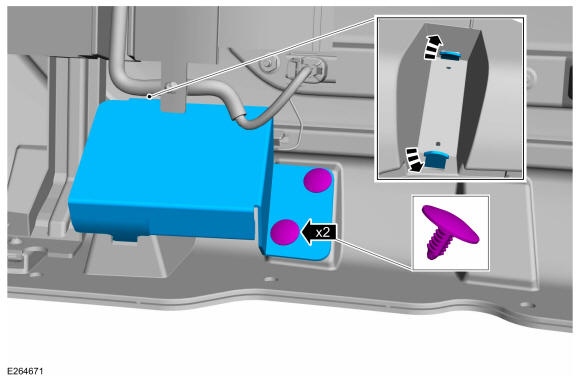

- Remove the push pins, release the locating tab and remove the liftgate module cover.

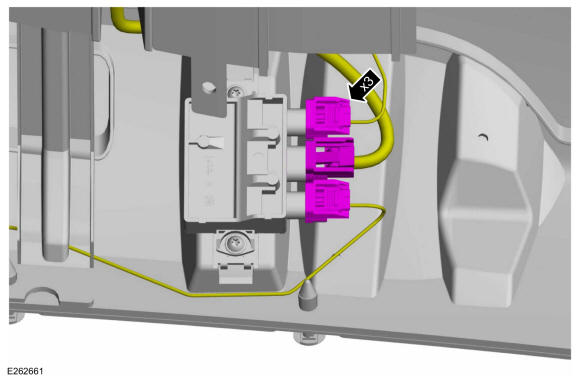

- Disconnect the hands-free liftgate actuation module electrical connectors.

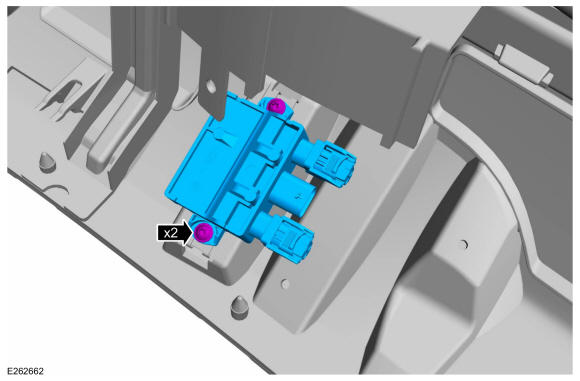

- Remove the screws and the liftgate module.
Torque: 19 lb.in (2.2 Nm)
