Liftgate Alignment
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Liftgate Alignment
Inspection
- Check liftgate-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments

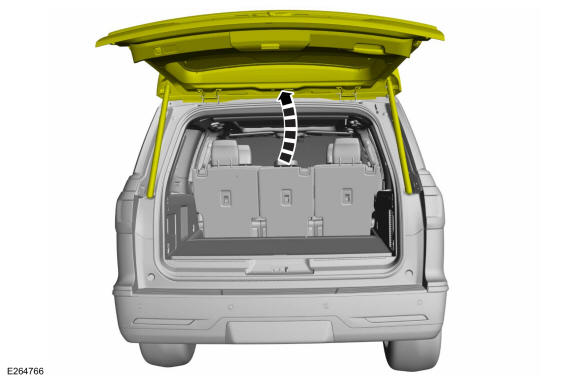

- Open the liftgate.

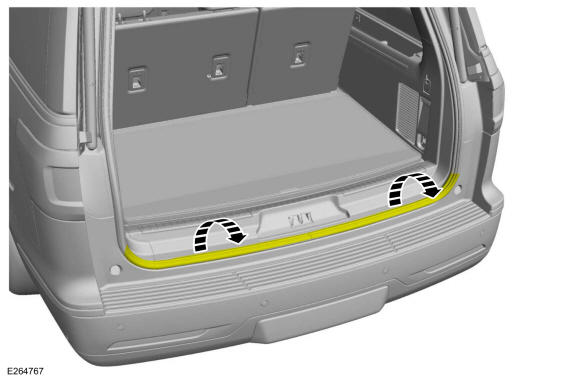

- Position aside the liftgate weatherstrip.

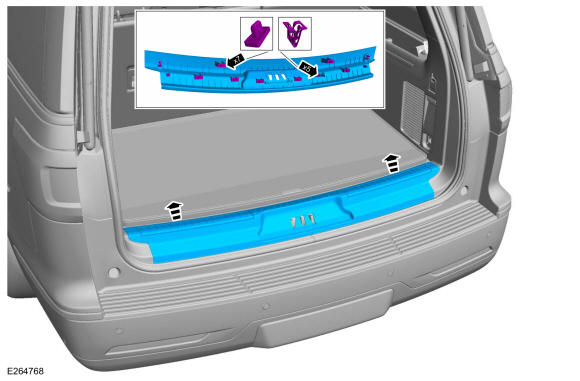

- Release the clips and remove the liftgate scuffplate trim panel.

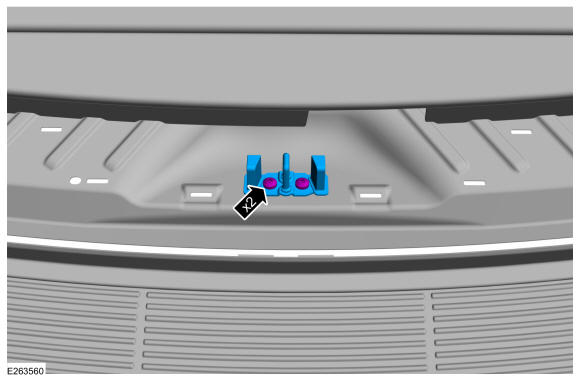

- Remove the liftgate striker.
Liftgate left and right, up and down alignment

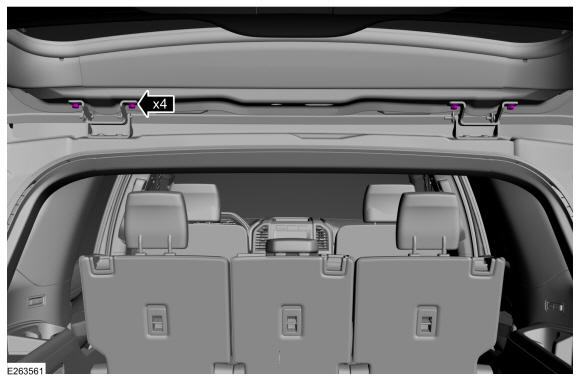

- Loosen the bolts to permit movement of the liftgate.

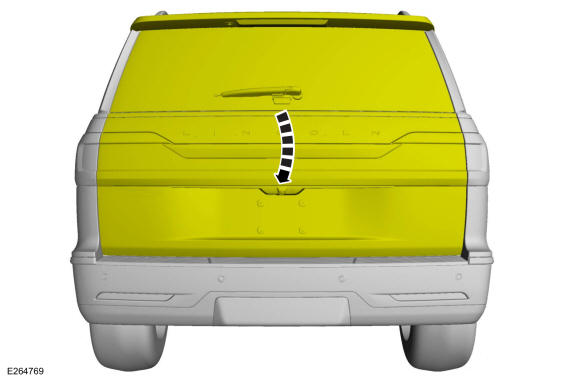

- Carefully close the liftgate.

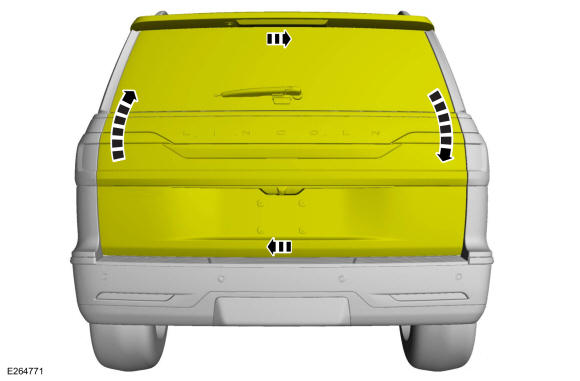

- Adjust the liftgate to specification. Refer to: Body and Frame
.
- Carefully open the liftgate.
- Tighten the bolts.
Torque: 18 lb.ft (25 Nm)
Liftgate in and out alignment
- Remove the D-Pillar trim panel. Refer to:D-PILLAR TRIM PANEL - SHORT WHEELBASE or D-Pillar Trim Panel - Long Wheelbase .

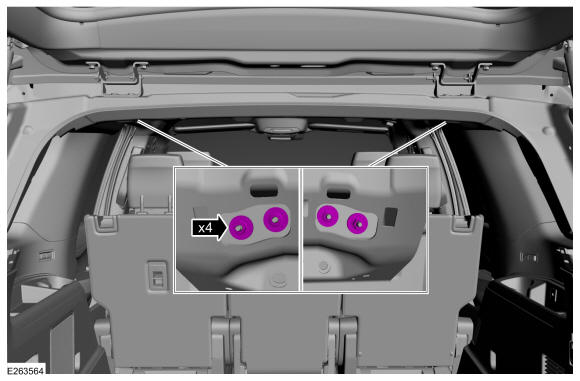

- Loosen the nuts to permit movement of the liftgate.

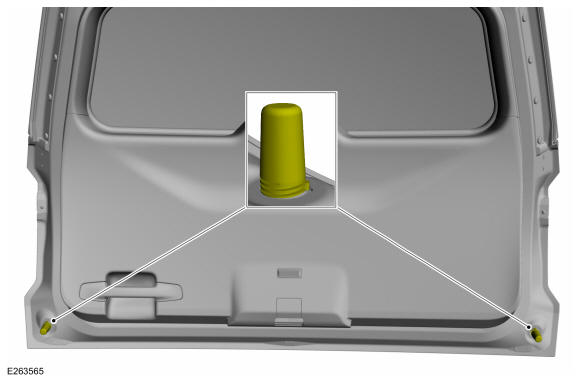

- Set the liftgate rubber stoppers to nominal position.The tab on the stopper should touch the liftgate surface.
- Carefully close the liftgate.

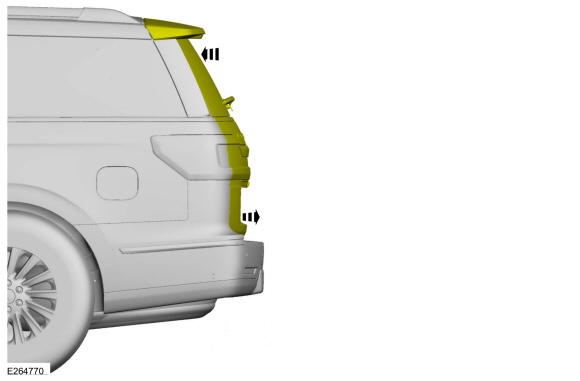

- Adjust the liftgate to specification. Refer to: Body and Frame
.
- Carefully open the liftgate.
- Tighten the nuts.
Torque: 17 lb.ft (23 Nm)
All alignments
- Install the liftgate striker.
Torque: 18 lb.ft (25 Nm)

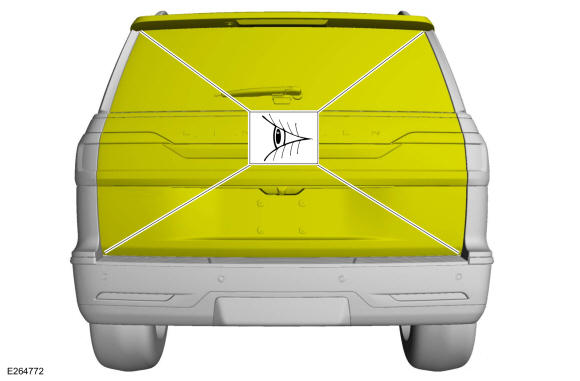

- Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame
.
- Install the removed components.
- If equipped.Carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
