Hood Alignment

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

  1. Inspect the hood-to-body dimensions. Refer to: Body and Frame .

    All alignments

  2. Remove the hood latch. Refer to: Hood Latch .

    Hood fore and aft, left and right alignments

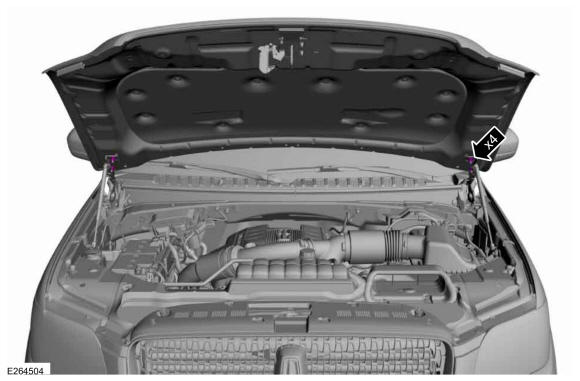

  3. Loosen the nuts to permit movement of the hood.
    GFD274788Courtesy of FORD MOTOR COMPANY
  4. Carefully close the hood.
    GFD274789Courtesy of FORD MOTOR COMPANY

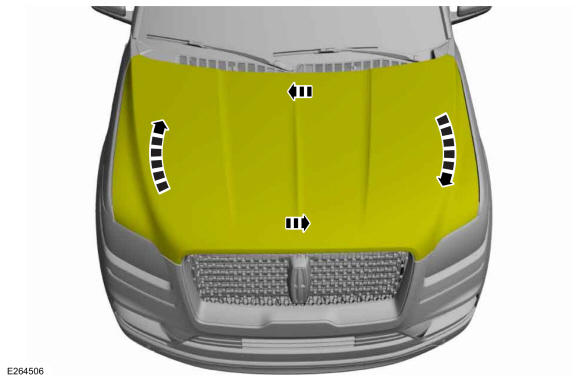

  5. Adjust the hood to specification. Refer to: Body and Frame .
    GFD274790Courtesy of FORD MOTOR COMPANY

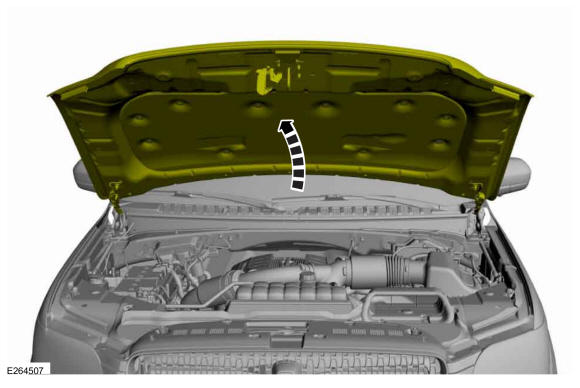

  6. Carefully open the hood.
    GFD274791Courtesy of FORD MOTOR COMPANY
  7. Tighten the nuts.

    Torque: 17 lb.ft (23 Nm)

    GFD274788Courtesy of FORD MOTOR COMPANY

    Hood front up and down alignments

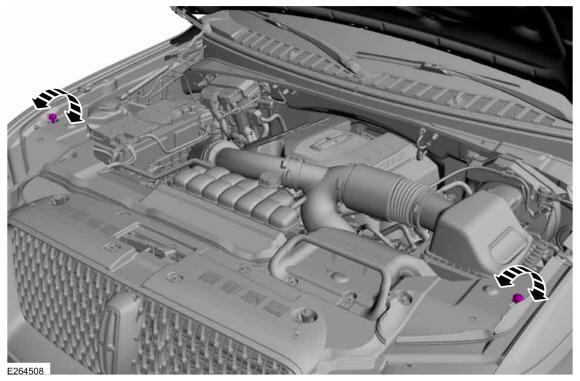

  8. Adjust the bump stop rubbers.
    GFD274792Courtesy of FORD MOTOR COMPANY
  9. Carefully close the hood.
    GFD274789Courtesy of FORD MOTOR COMPANY

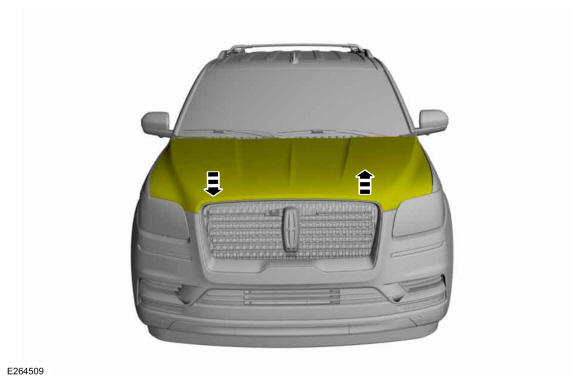

  10. Adjust the hood to specification. Refer to: Body and Frame .
    GFD274793Courtesy of FORD MOTOR COMPANY

    All alignments

  11. Install the hood latch. Refer to: Hood Latch .

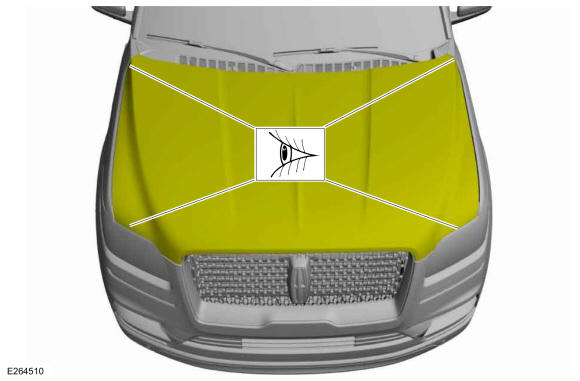

  12. Inspect the body-to-hood dimensions. Refer to: Body and Frame .
GFD274794Courtesy of FORD MOTOR COMPANY
