Front Door Alignment

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: LH side shown, RH side similar.

Check the body-to-front door dimensions. Refer to: Body and Frame .

Adjustment

All alignments

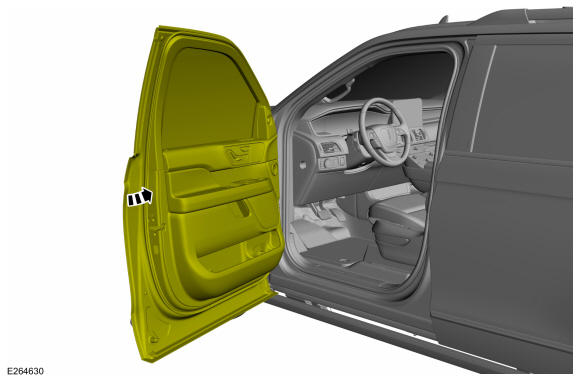

Open the front door.

Courtesy of FORD MOTOR COMPANY

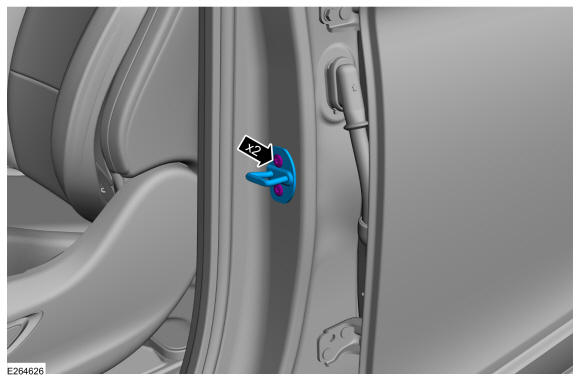

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

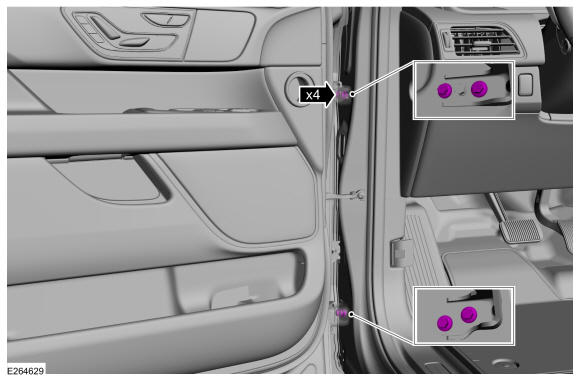

Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

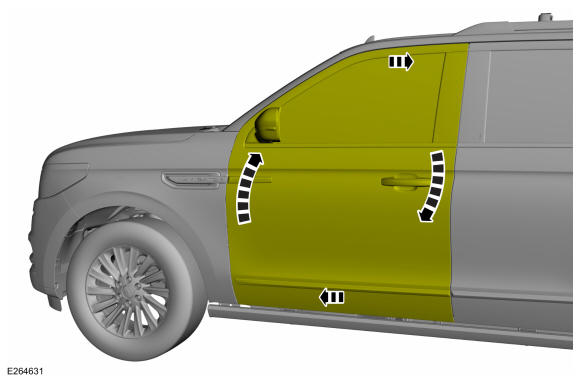

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

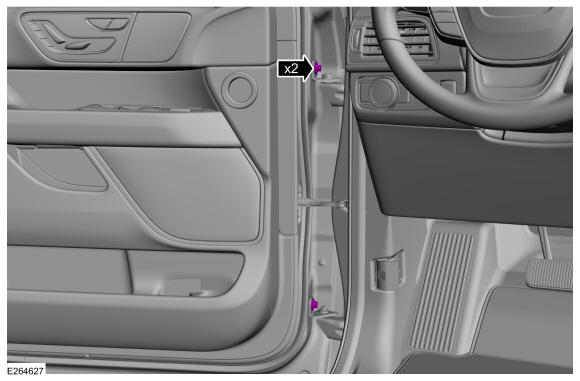

Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

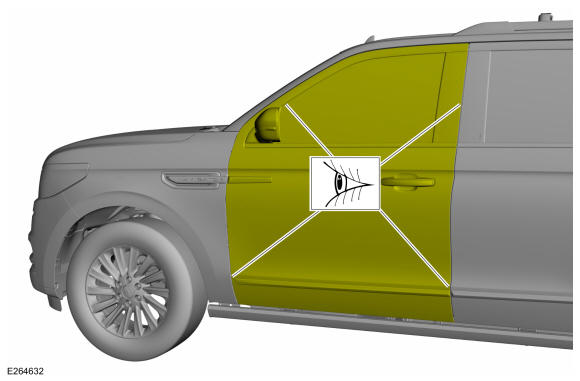

Check the body-to-front door dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
