Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the on-screen instructions.
Remove the front bumper cover. Refer to: Front Bumper Cover .

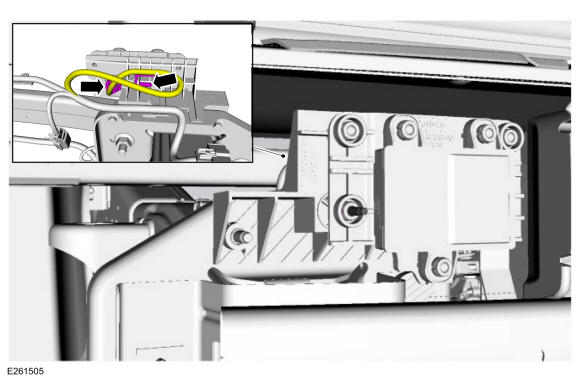

Detach the wiring harness retainer and disconnect the CCM electrical connector.

Courtesy of FORD MOTOR COMPANY

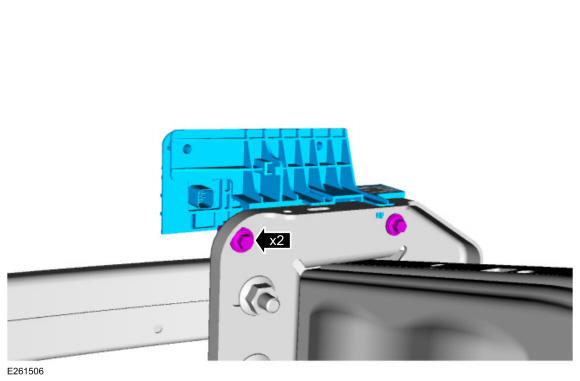

Remove the bolts and the CCM and bracket assembly.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
