Drive Pinion Assembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

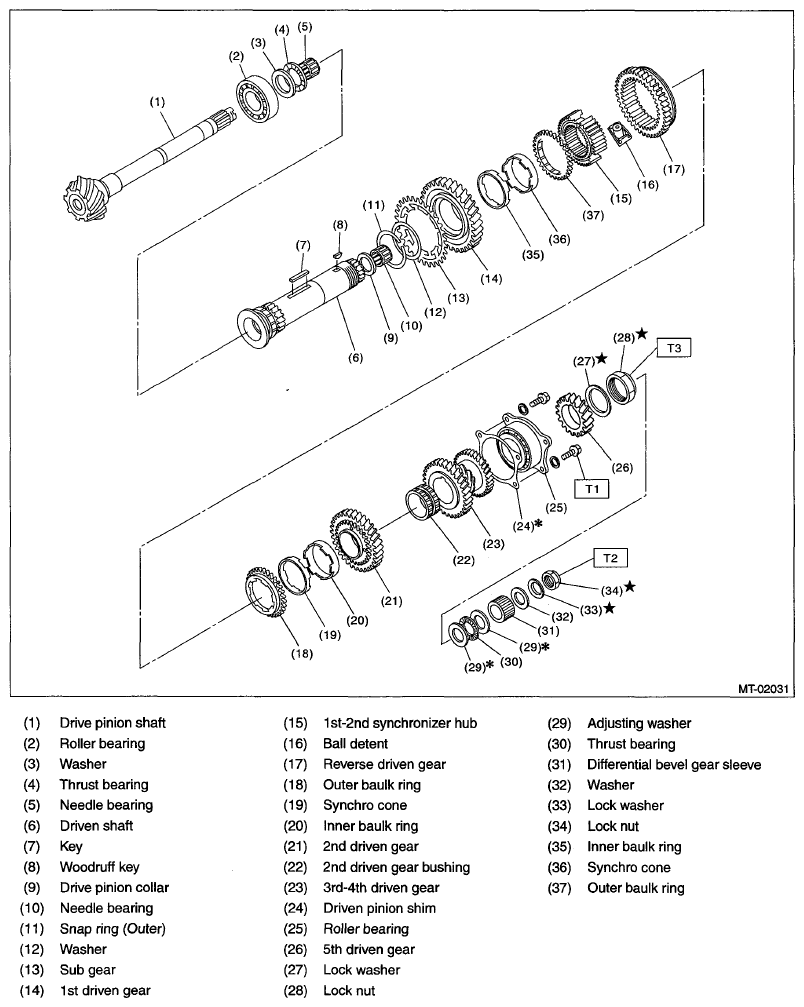

Fig 1: Exploded View Of Drive Pinion Assembly With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque. N.m (kgf-m, ft-lb)

T1. 30 (3.1, 22.1)

T2: 120 (12.2, 88.5)

T3: 260 (26.5, 191.8)
