Rear Climate Control Housing: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R1234Yf Refrigerant or Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
Drain the cooling system. Refer to:COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
Remove the RH loadspace trim panel. Refer to:LOADSPACE TRIM PANEL .
NOTE: Be prepared to collect escaping fluid.

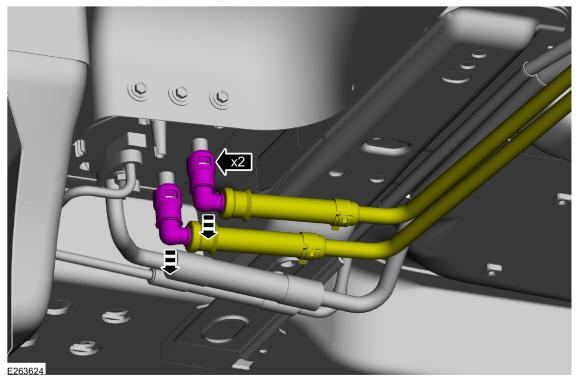

Disconnect the quick release couplings from the rear heater core. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

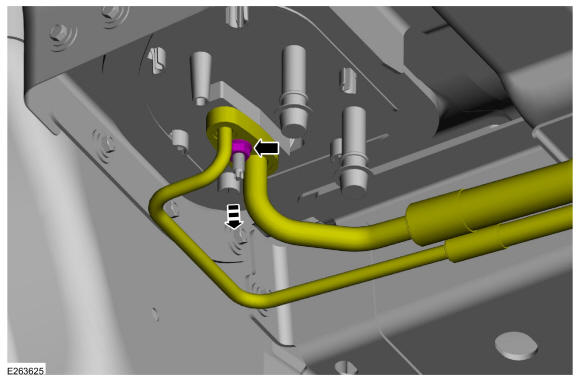

Remove the nut and position the rear thermostatic expansion valve manifold and tube assembly aside.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

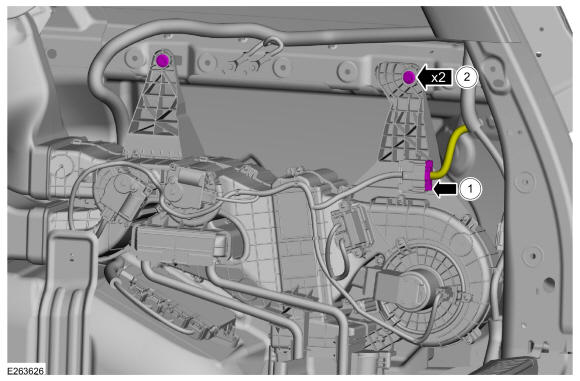

1. Disconnect the electrical connector.
2. Remove the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

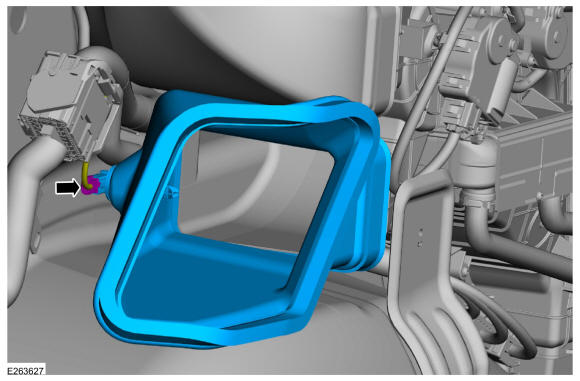

Disconnect the electrical connector and remove the rear footwell duct.

Courtesy of FORD MOTOR COMPANY

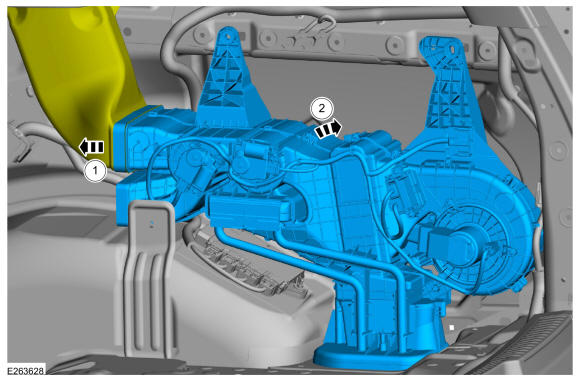

1. Disconnect the duct.
2. Remove the rear climate control housing.

Courtesy of FORD MOTOR COMPANY
