Rear Climate Control - Component Location
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

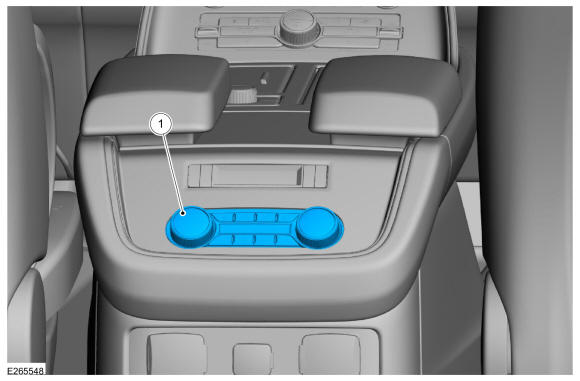

| Item | Description |
|---|---|
| 1 | Rear HVAC Control Module |

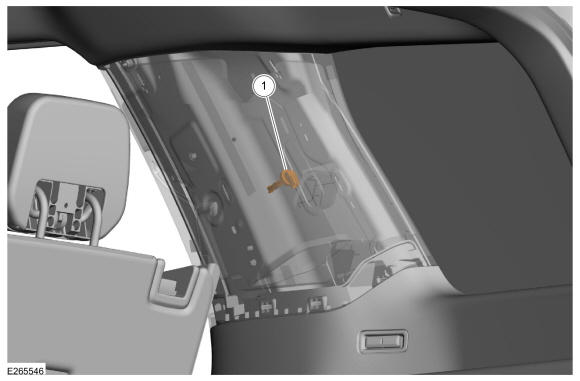

| Item | Description |
|---|---|
| 1 | Rear Air Discharge Temperature Sensor |

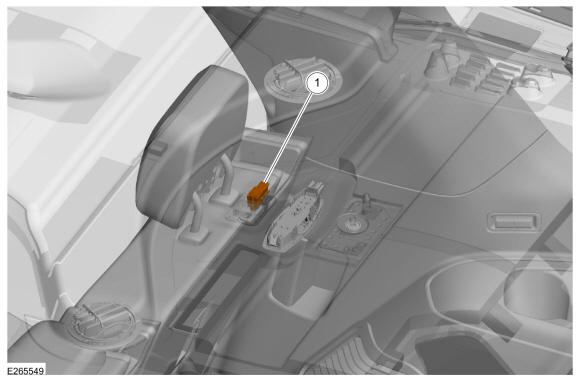

| Item | Description |
|---|---|
| 1 | Rear Temperature Sensor |

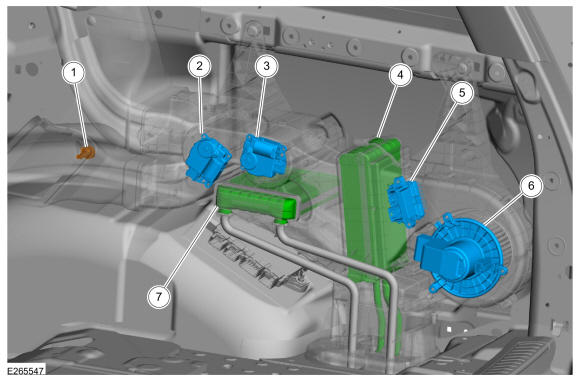

| Item | Description |
|---|---|
| 1 | Rear Footwell Air Discharge Temperature Sensor |
| 2 | Rear Air Distribution Door Actuator |
| 3 | Rear Temperature Door Actuator |
| 4 | Rear Evaporator |
| 5 | Rear Blower Motor Speed Control |
| 6 | Rear Blower Motor |
| 7 | Rear Heater Core |

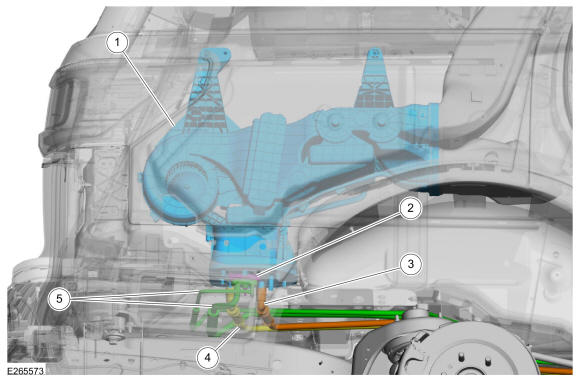

| Item | Description |
|---|---|
| 1 | Rear Climate Control Housing |
| 2 | Rear Thermostatic Expansion Valve |
| 3 | Rear Heater Core Outlet Line |
| 4 | Rear Heater Core Inlet Line |
| 5 | Rear Evaporator Rear Outlet and Inlet Line |
