Blower Motor Control Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

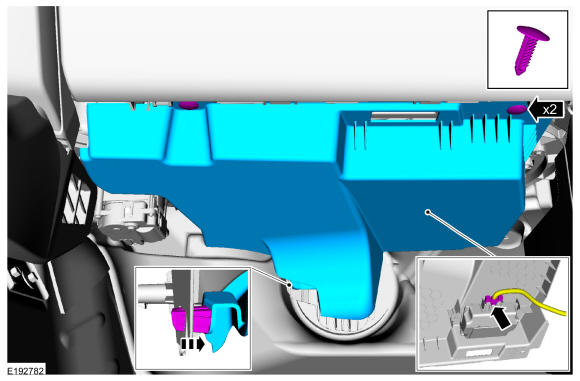

Remove the push pins and the RH insulation panel.
- If equipped, disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with TCCM.

Remove the BCM cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with TCCM.

NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when positioning aside the TCCM.

Loosen the LH nut and remove the RH (right-hand) nut.

Courtesy of FORD MOTOR COMPANY

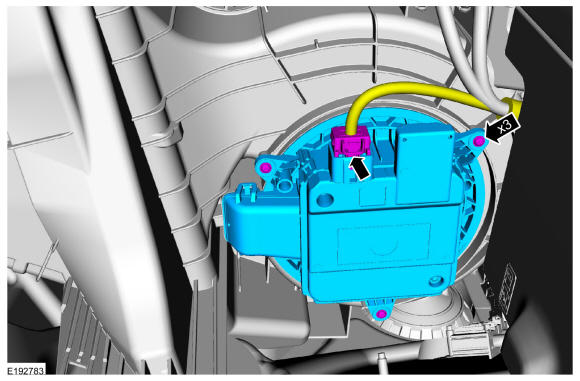

Disconnect the electrical connector, remove the retainers and the blower motor control module.

Courtesy of FORD MOTOR COMPANY
