Mode Select Switch (MSS): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

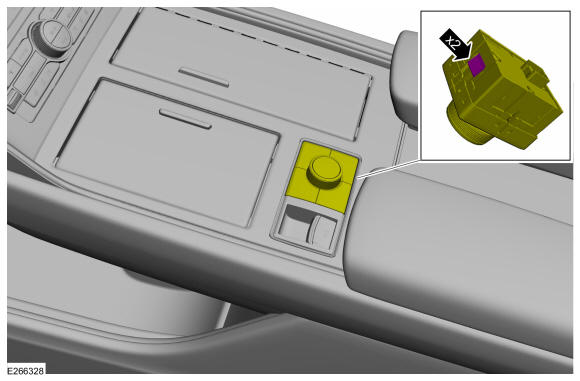

- Carefully pry the MSS from the center floor console panel. Use the General Equipment: Interior Trim Remover.
 Courtesy of FORD MOTOR COMPANY
|

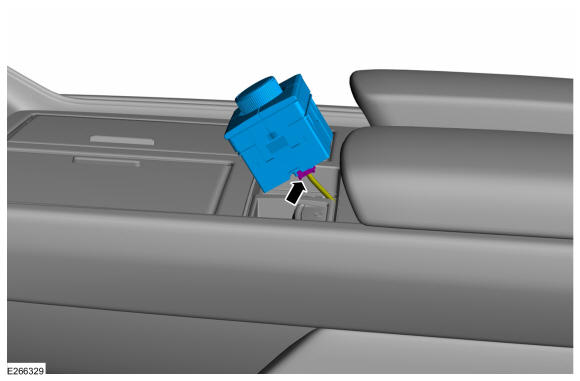

- Disconnect the MSS harness connector and remove the switch.
 Courtesy of FORD MOTOR COMPANY
|
