Gear Shift Module (GSM): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

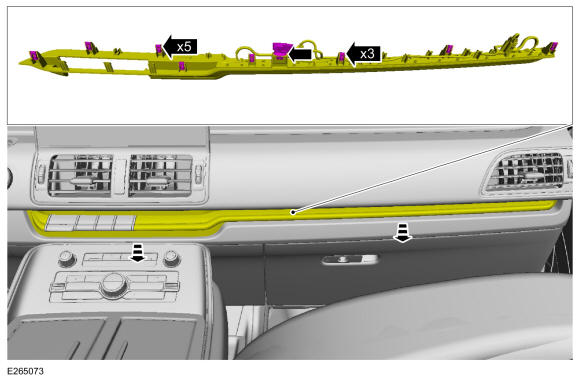

- Detach and position aside the ambient light bar and disconnect the wiring harness retainer.
 Courtesy of FORD MOTOR COMPANY
|

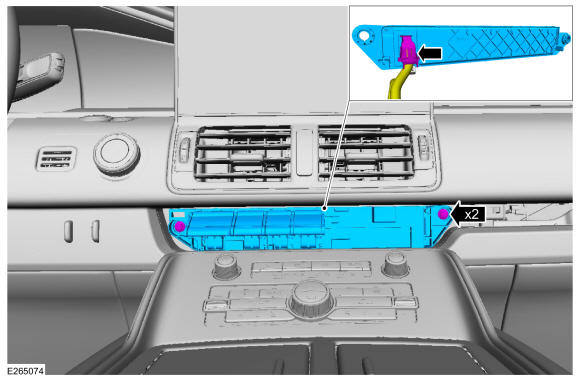

- Remove the screws, disconnect the electrical connector and remove the GSM.
 Courtesy of FORD MOTOR COMPANY
|
