Catalyst Monitor Sensor: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

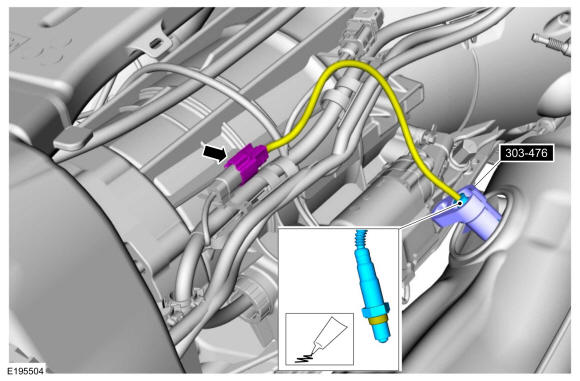

Left hand (LH) Catalyst monitor sensor
- Apply anti-seize to thread of sensor, using special tool install the Catalyst monitor sensor.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)

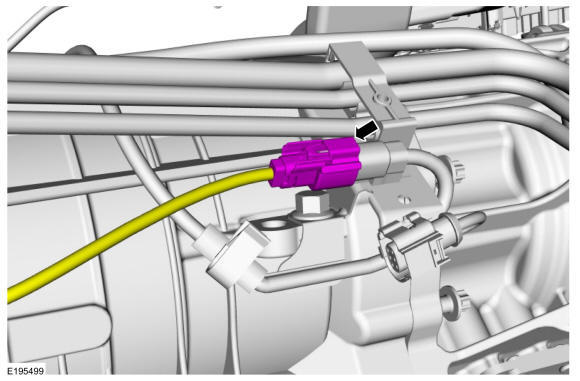

- Connect the electrical connector.
Right hand (RH) Catalyst monitor sensor
-

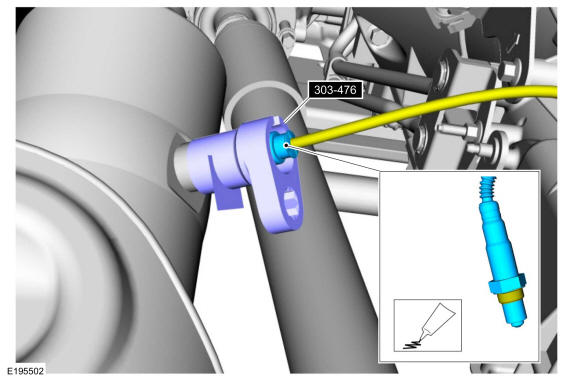

- Apply anti-seize to thread of sensor, using special tool install the Catalyst monitor sensor.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
- Connect the electrical connector.
All sensors
- Apply anti-seize to thread of sensor, using special tool install the Catalyst monitor sensor.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
- If equipped, install the underbody shield.
Torque: 71 lb.in (8 Nm)
