Fuel Pump Driver Module (FPDM): Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

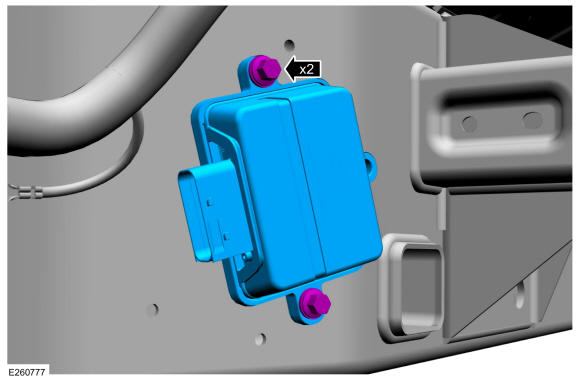

- Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.
Torque
: 133 lb.in (15 Nm)

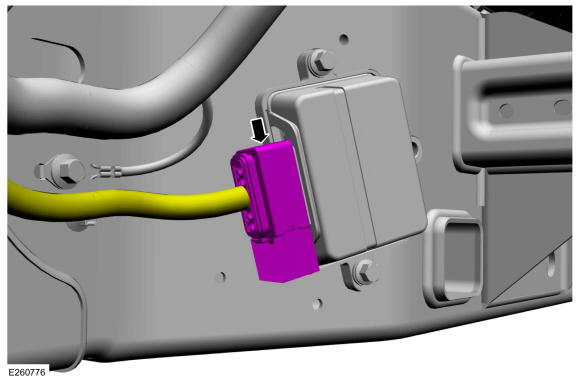

- Connect the fuel pump driver module electrical connector.

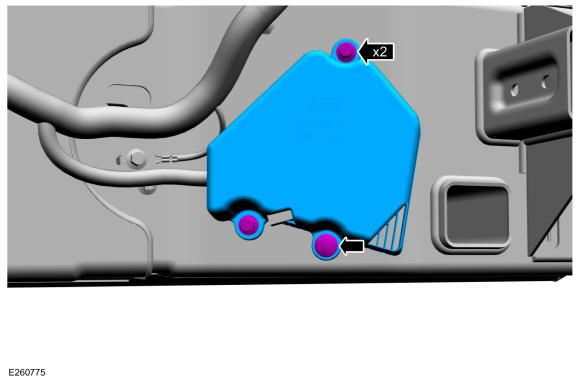

- Install the fuel pump driver module cover, then install and tighten the fuel pump driver module cover retainers.
Torque
: 133 lb.in (15 Nm)
