Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the steering wheel. Refer to: Steering Wheel .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
Vehicles with selector lever

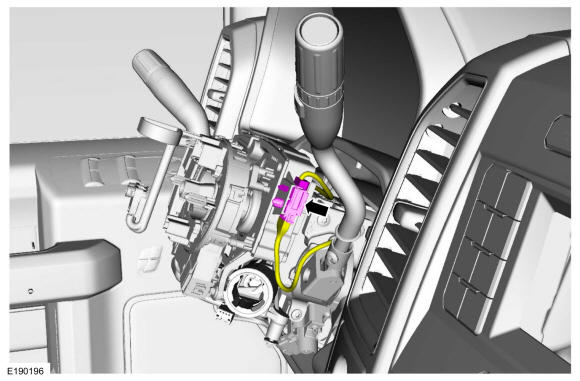

Release the selector lever electrical connector retainer from the SCCM.

Courtesy of FORD MOTOR COMPANY

All vehicles

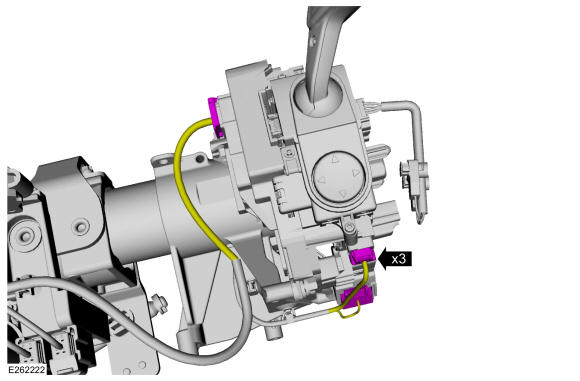

Disconnect the SCCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

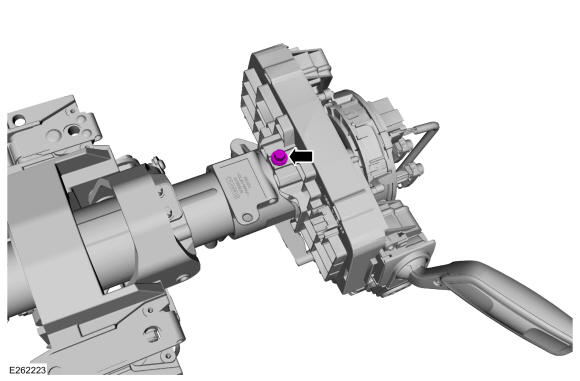

Remove the SCCM upper screw.
Torque: 25 lb.in (2.8 Nm)

Courtesy of FORD MOTOR COMPANY

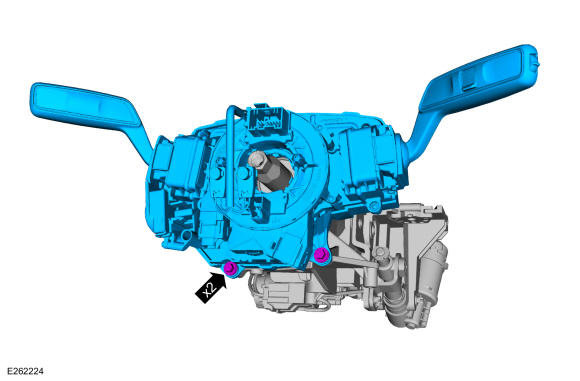

Remove the lower SCCM screws and the SCCM.
Torque: 25 lb.in (2.8 Nm)

Courtesy of FORD MOTOR COMPANY
