Trailer Brake Control Module (TBM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel .

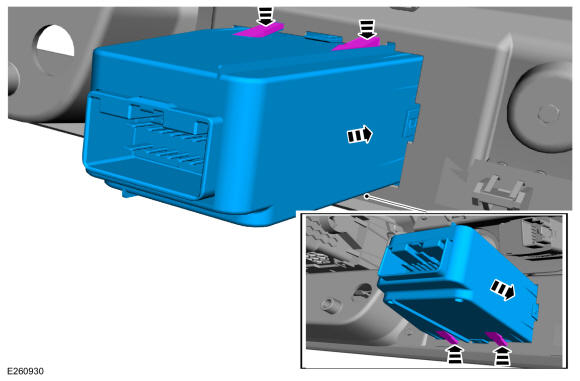

  2. Press the tabs and remove the TBM.
GFD272072Courtesy of FORD MOTOR COMPANY
