Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Remove the wheel and tire. Refer to: Wheel and Tire .

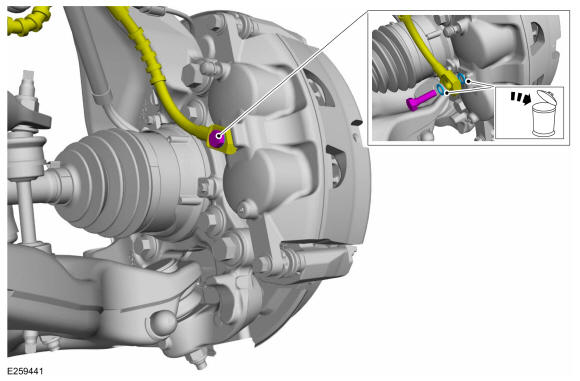

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

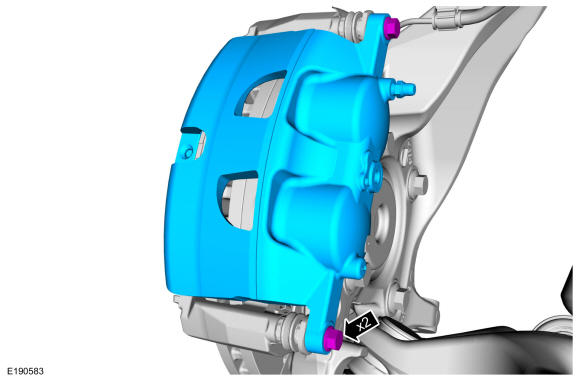

Remove the bolts and the brake caliper.
Torque: 27 lb.ft (37 Nm)

Courtesy of FORD MOTOR COMPANY
