Front Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake pads. Refer to: Brake Pads .

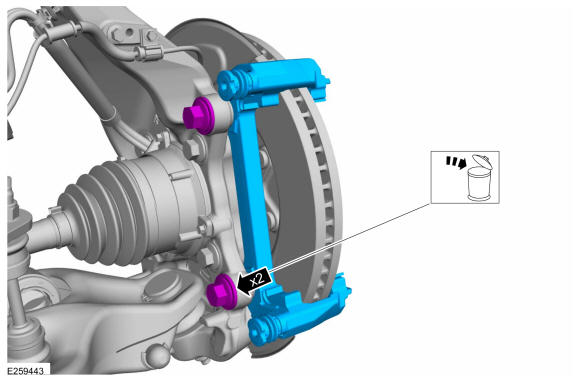

  2. Remove the bolts and the anchor plate. Discard the bolts

    Torque: 184 lb.ft (250 Nm)

GFD271991Courtesy of FORD MOTOR COMPANY
