Shock Absorber and Spring Assembly: Assembly

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped with dynamic suspension, the RH and LH shock absorber assemblies are unique and cannot be used on opposite sides of the vehicle.

NOTE: Make sure that the components are installed to the position noted before removal.

To assemble, reverse the disassembly procedure.

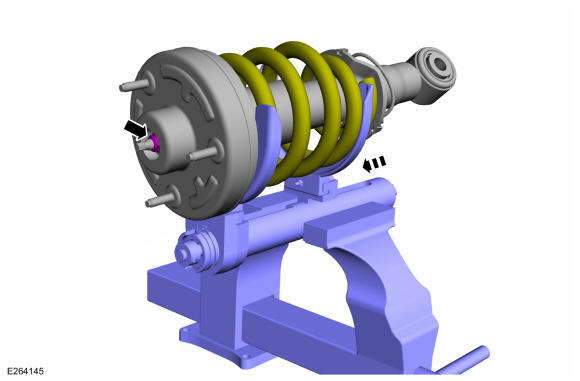

NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.

Install and tighten the new strut rod nut. Use the General Equipment: Vise Use the General Equipment: Spring Compressor

Torque: 41 lb.ft (56 Nm)

Courtesy of FORD MOTOR COMPANY
