WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

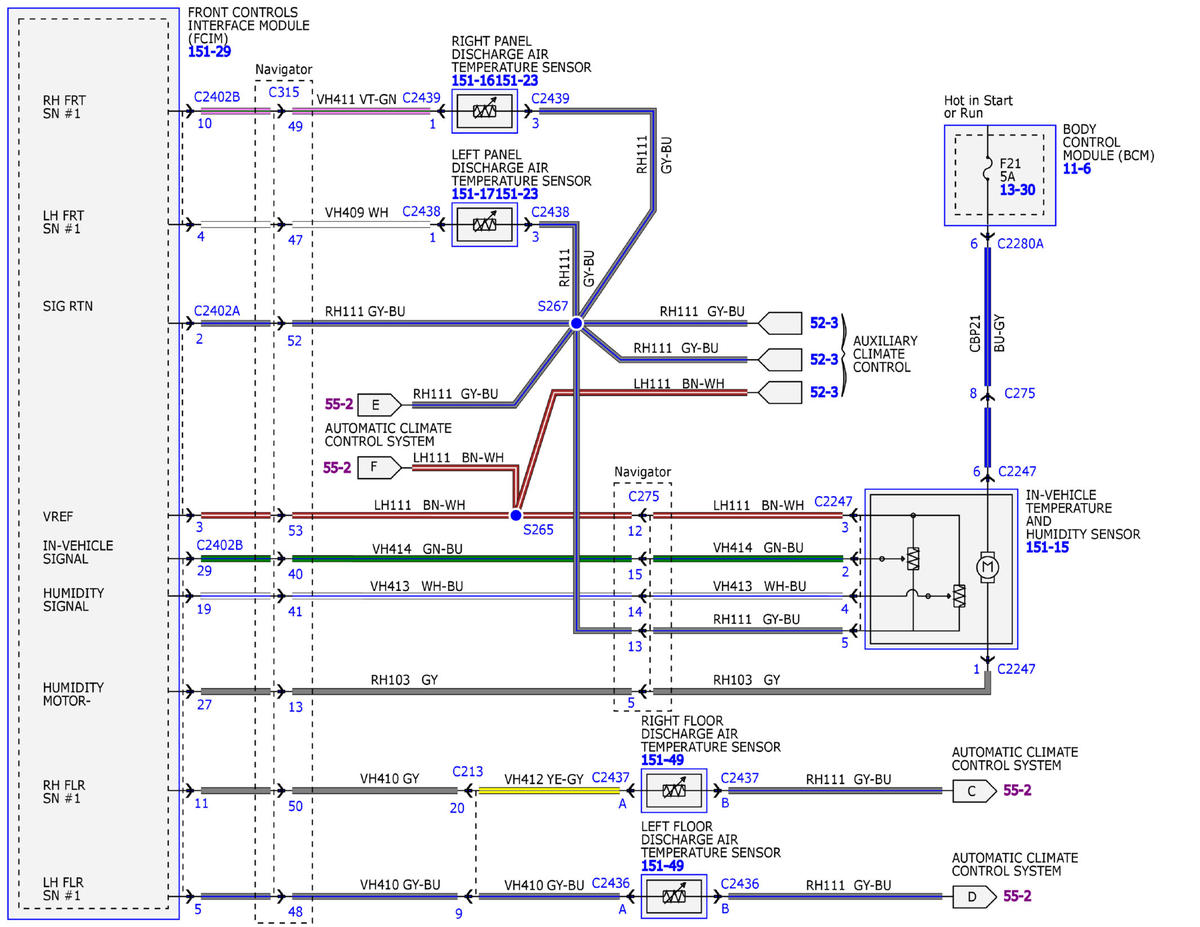

Fig 1: Automatic Climate Control System (1 Of 7)
Courtesy of FORD MOTOR COMPANY

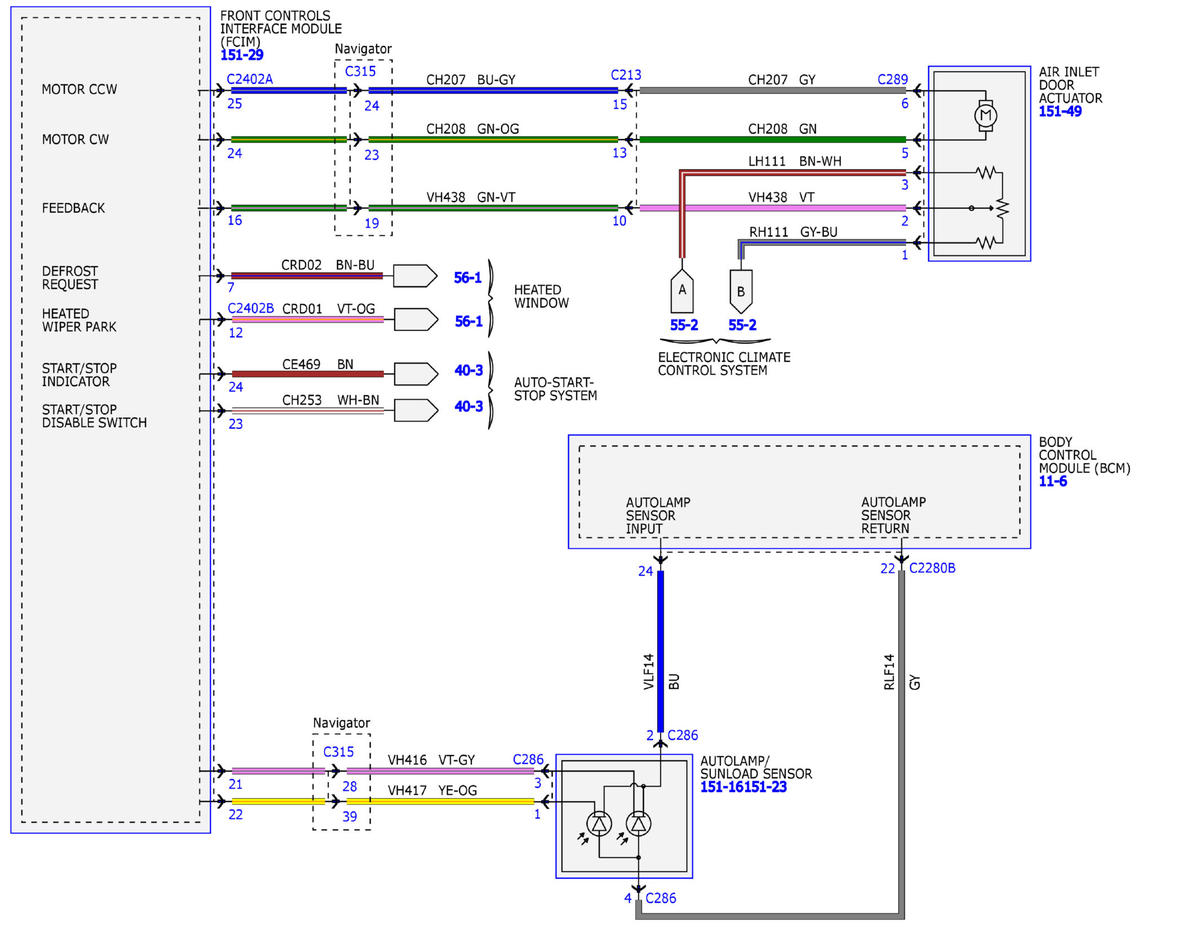

Fig 2: Automatic Climate Control System (2 Of 7)
Courtesy of FORD MOTOR COMPANY

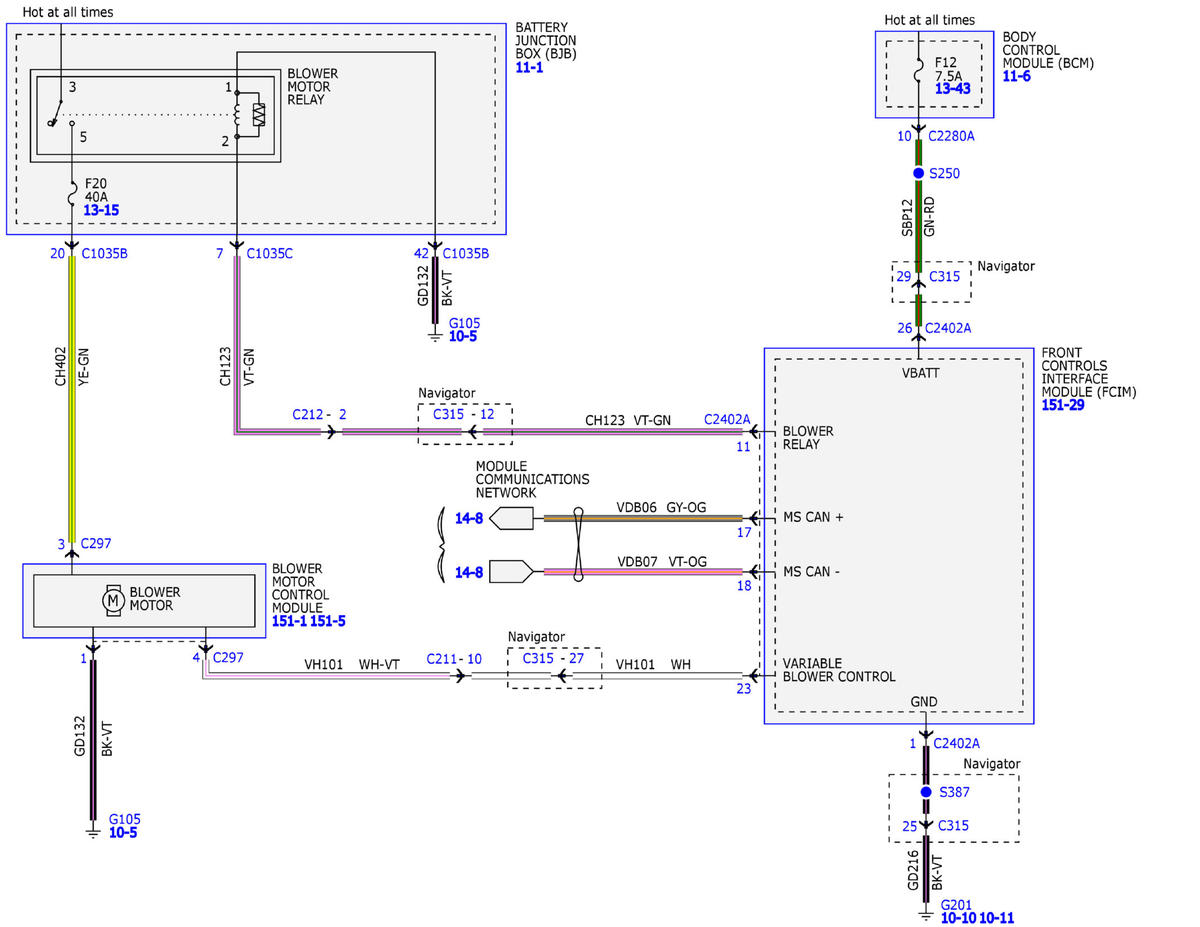

Fig 3: Automatic Climate Control System (3 Of 7)
Courtesy of FORD MOTOR COMPANY

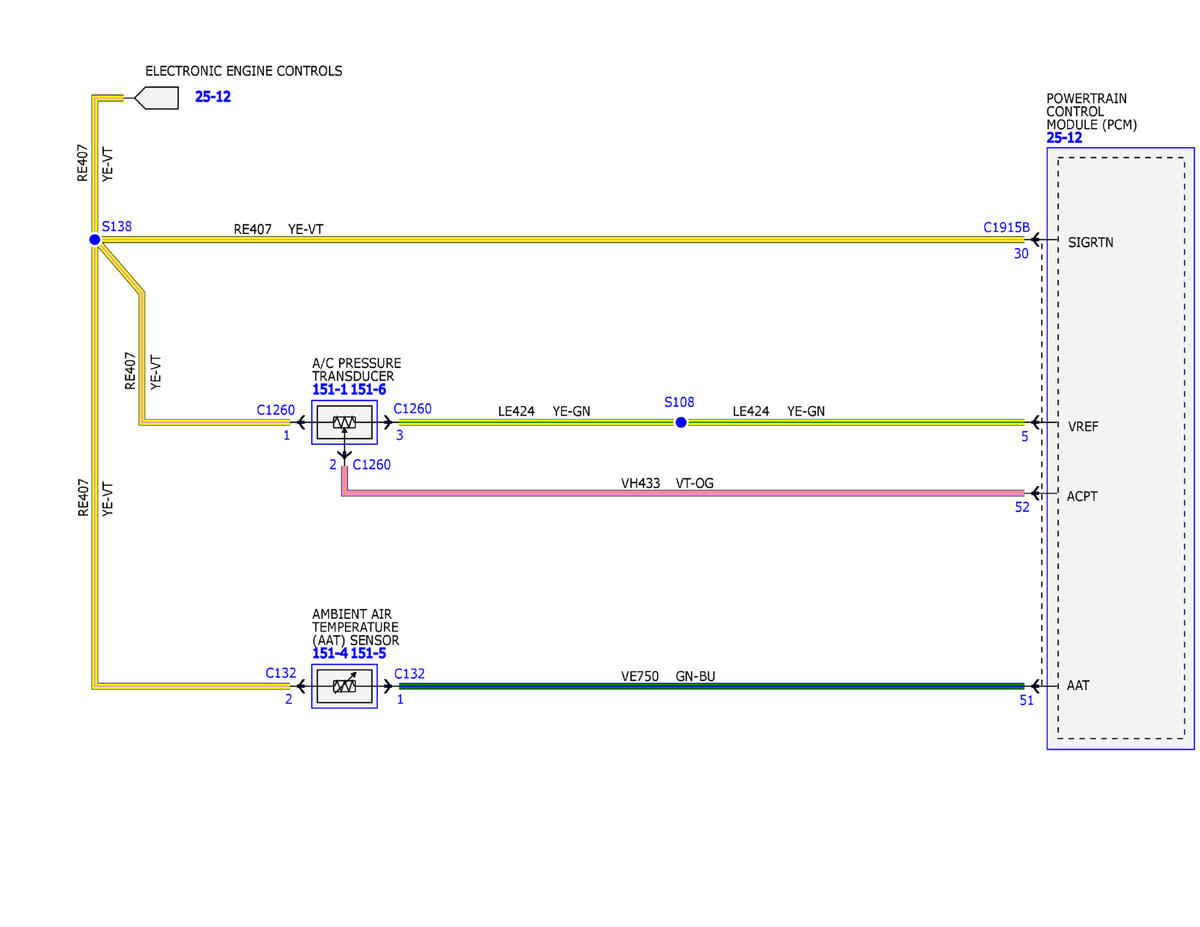

Fig 4: Automatic Climate Control System (4 Of 7)
Courtesy of FORD MOTOR COMPANY

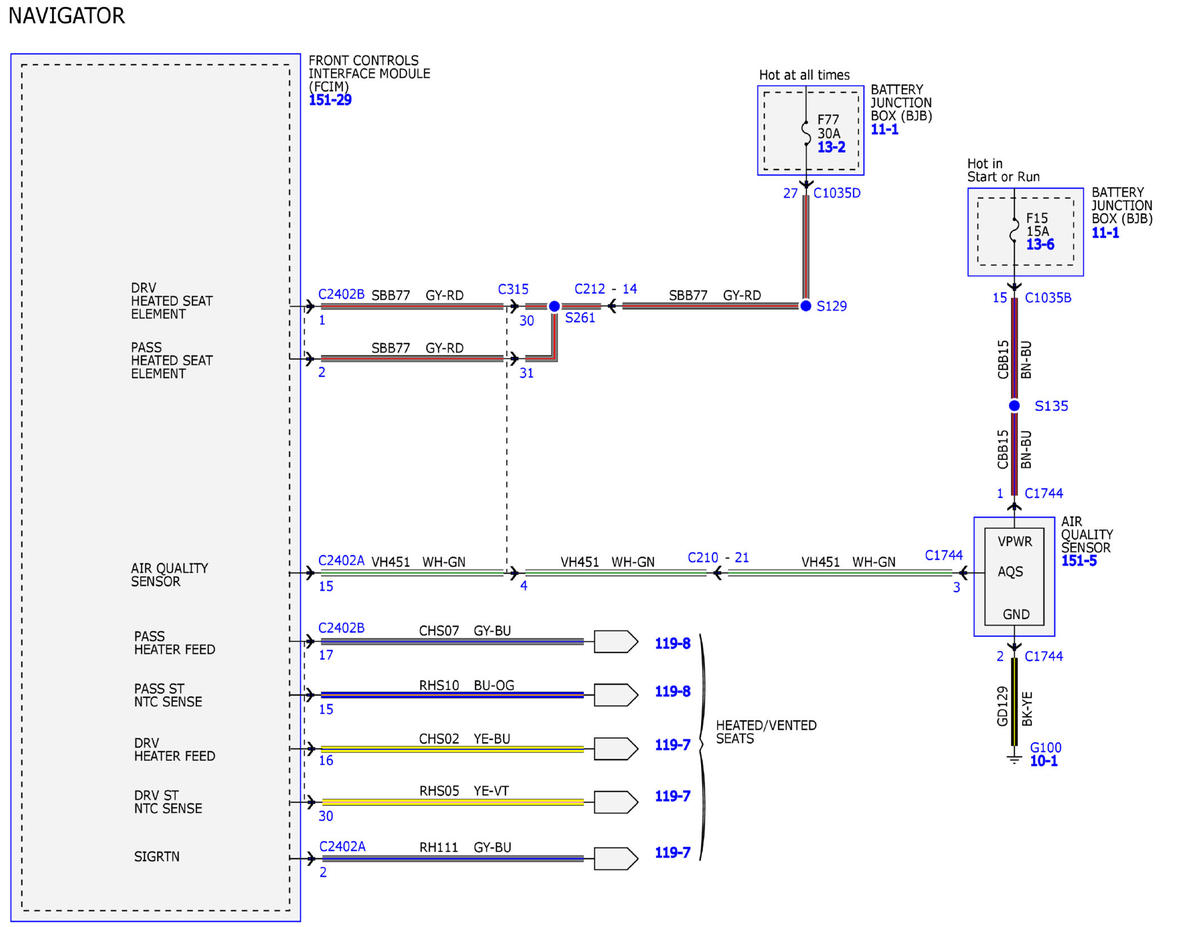

Fig 5: Automatic Climate Control System (5 Of 7)
Courtesy of FORD MOTOR COMPANY

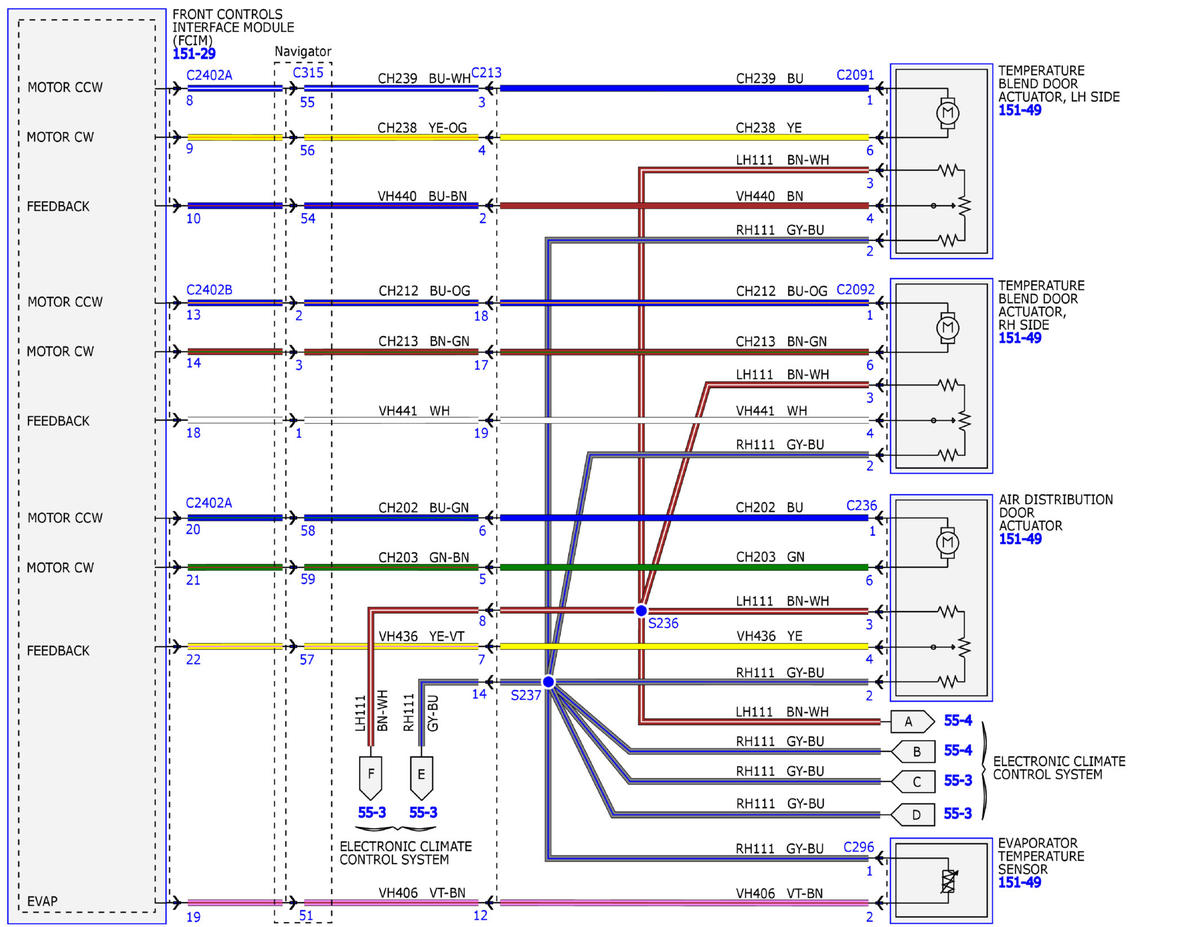

Fig 6: Automatic Climate Control System Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

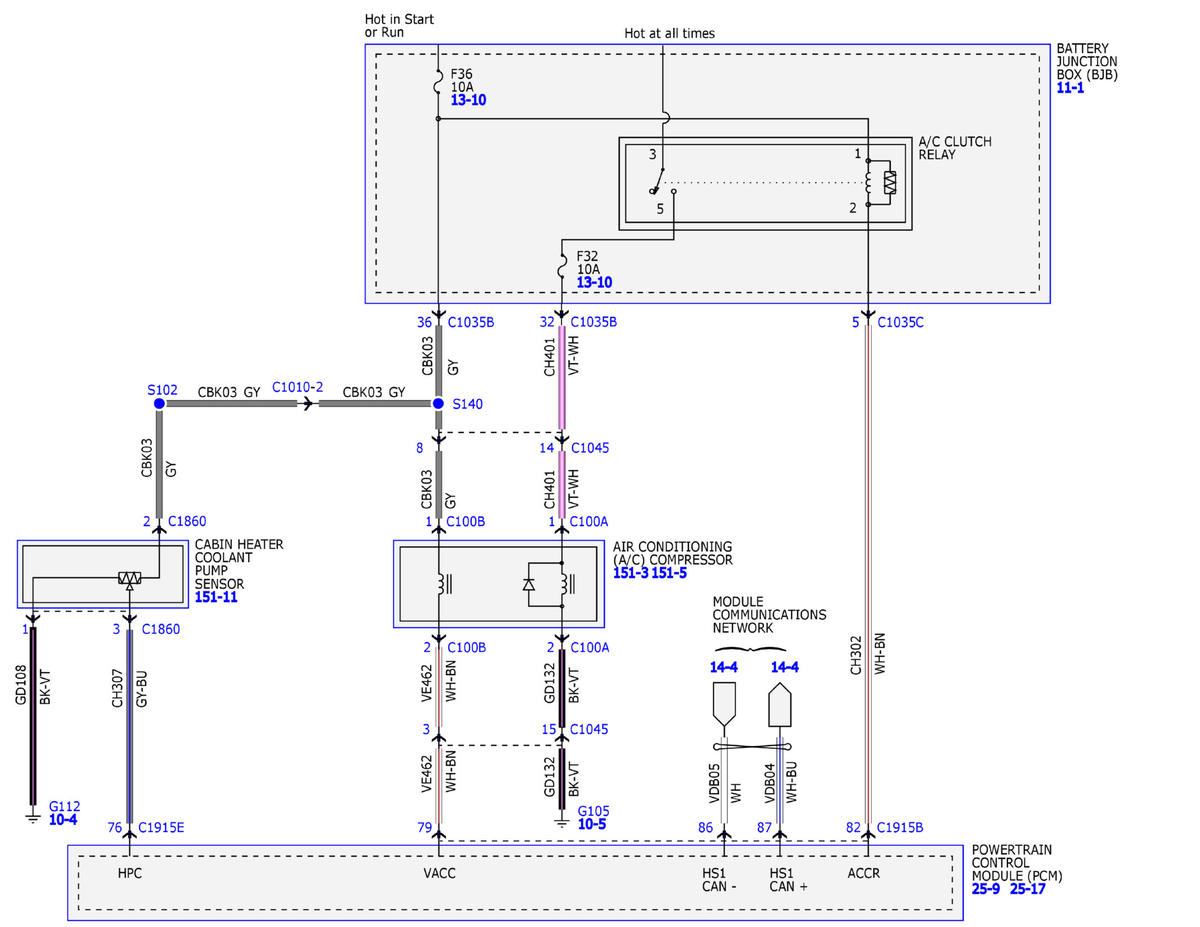

Fig 7: Automatic Climate Control System Wiring Diagram (7 Of 7)
