Rearview Camera System Control Module -J772- REMOVING AND INSTALLING, THROUGH MY 2016: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

The bracket must be removed first in order to be able to remove the Rearview Camera System Control Module -J772-. It is attached with screws to the relay and fuse panel F inside the luggage compartment on the right side. The relay and fuse panel F in the luggage compartment on the right side must first be removed. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .

Removing the bracket

-- Unlock and disconnect all of the connectors from the control modules.

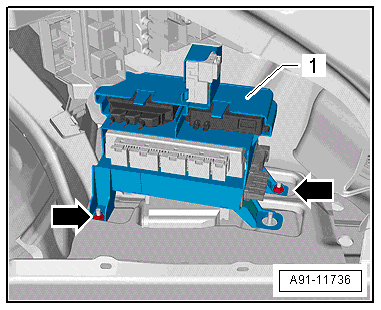

-- Remove the nuts -arrows- and remove the bracket -1- along with the control modules from the luggage compartment recess.

Courtesy of AUDI OF AMERICA, LLC

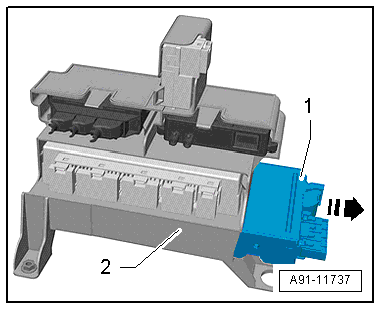

The Rearview Camera System Control Module -J772- -1- is only clipped into the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors from the Rearview Camera System Control Module -J772- -1-.

-- Press the retainer downward and remove the Rearview Camera System Control Module -J772- -1- from the bracket -2-.
