Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Move the carpet to the side. .

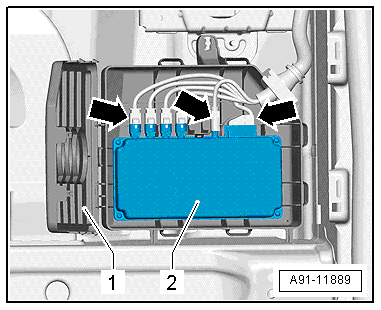

-- Open the E-box cover -1-.
-- Release and disconnect the connectors -arrows- from the Peripheral Camera Control Module -J928- -2-.
The Peripheral Camera Control Module -J928- -2- is only clipped into the E-box.
-- Push the retainer to the side and remove the Peripheral Camera Control Module -J928- -2- from the E-box.
