Night Vision System Control Module, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Loosen the front left seat and with the wires still attached and push rearward. Refer to FRONT SEATS .

-- Remove the floor mat.

-- Remove the sill panel. .

-- Remove the footrest. .

-- Disengage the carpet and push aside.

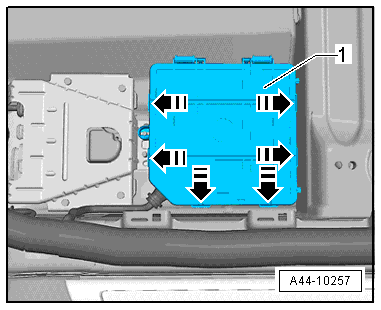

-- Release the clips in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -1-.

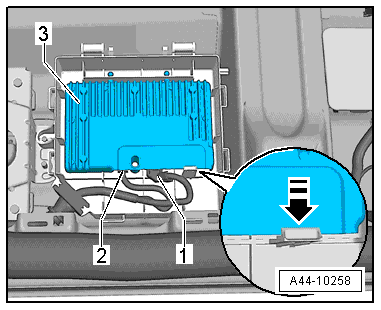

-- Push the retaining tab in the direction of -arrow- and remove the Night Vision System Control Module -J853- -3- from the E-box.

Courtesy of AUDI OF AMERICA, LLC

-- Release connectors -1 and 2- and remove from the Night Vision System Control Module -J853- -3-

First release the connector -2- and then -1-.
