Chip Card Reader Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Open the glove compartment.
-- Remove the chip card.

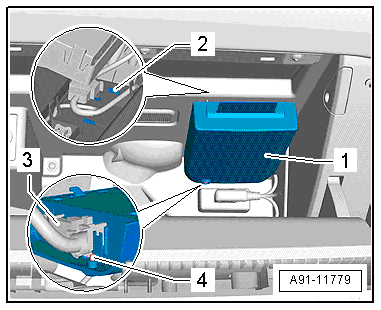

-- Slide the Chip Card Reader Control Module -J676- -1- back until it can be removed from the trim.
-- Remove the clip -4-.
-- Release and disconnect the connector -3- from the Chip Card Reader Control Module -J676- -1-.
