External Audio Source Connection 2 -R231-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

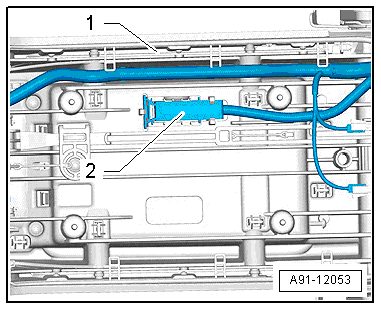

The External Audio Source Connection 2 -R231- -2- is installed from behind in the rear center armrest storage compartment -1-.

GWWA91-12053Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center armrest. .

-- Remove the External Audio Source Connection 2 -R231- -2- from the center console -1-.

GWWA91-12053Courtesy of AUDI OF AMERICA, LLC
