DRC System Pressure Checking

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

DRC Pressure Tester :VAS6209/2
Hand Vacuum Pump :VAS6213

:VAS6209/2 Bleeding

Use only approved oil for the bleeding procedure.

NOTE:

The :VAS6209/2 must always be bled the first time it is used.

If the :VAS6209/2 still shows a residual pressure greater than 0.5 bar (7.2 psi) (for example, from a previous reading), bleeding must not be done.

-- To bleed pressure gauge -B- and line section -A-, install special tool as shown in illustration.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Illustration Shows Bleeding Process By Extracting Hydraulic Fluid Using a :VAS6213 .

-- Bleed process must be performed until air bubbles are no longer visible in hose -C-.

-- Disconnect hose -C and D- and perform system pressure check.

System Pressure Check Is Performed On Front Shock Absorber Of Corresponding DRC Line.

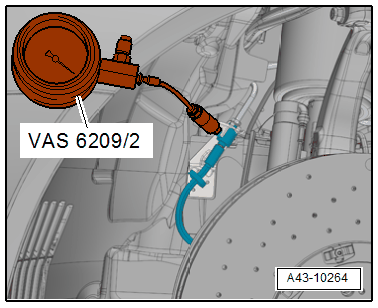

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cap from the extract/fill valve and connect the :VAS6209/2 .

-- Read the system pressure on the :VAS6209/2 .

NOTE:

The pressure on the :VAS6209/2 :VAS6209/2 increases slowly and takes approximately two minutes. DRC system pressure can only be read when :VAS6209/2 needle has finally come to a stop.

-- Disconnect the :VAS6209/2 and install the dust cap.

NOTE:

A Small Oil Leak At The Connection That Results From Connecting Or Disconnecting The :VAS6209/2 is not critical. Multiple measurements should be avoided since the system loses a little amount of oil each time the :VAS6209/2 is connected. Every connection results in a pressure decrease of approximately 0.3 bar (4.3 psi) from the previous reading. Multiple repeated measurements decrease system pressure below minimum pressure or failure.

-- If The Pressure Is Not OK, Determine The Cause And Service The System.

DRC System Pressure Values

Pressure Value. Refer To Reference Temperature Of 20 °C (68 °F)

16 bar (232 psi) = operating pressure
15 bar - 16 bar (218 - 232 psi) = central valve new or as good as new
14 bar -15 bar (203 - (218 psi) = normal range of operation, system OK
< 14 bar (203 psi) = system leaking or not filled completely, air entering system, central valve has no pressure/is empty.
