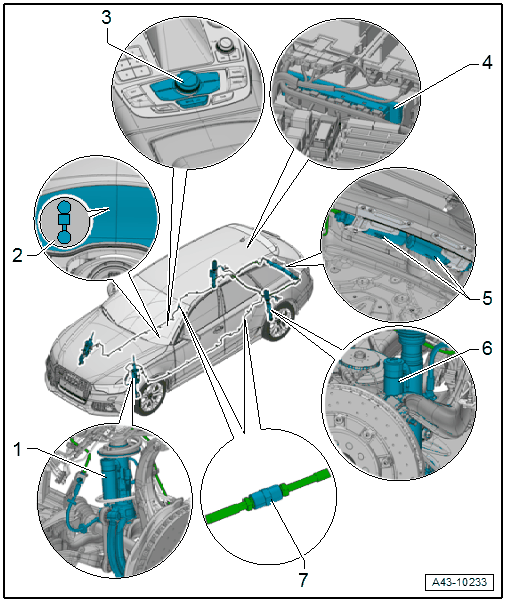

Component Location Overview - Dynamic Ride Control
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Front Suspension Strut with Extract/Fill Valve.
- Additional component with an integrated electric motor - vehicle with variable damping
- Indicator Lamp
- Vehicle with variable damping
- Audi Drive Select Controls
- Vehicle with variable damping
- Electronic Damping Control Module -J250-
- Vehicle with variable damping
- Removing and installing. Refer to Electronic Damping Control Module -J250-, REMOVING AND INSTALLING .
- Central Valves
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- The DRC system consists of two separate hydraulic systems. The central valves are connected diagonally to the applicable shock absorber.
- Rear Shock Absorber with Extract/Fill Valve.
- Additional component with an integrated electric motor - vehicle with variable damping
- Connection to the Right/Left Front Suspension Strut
- 14 Nm
