Level Control System Control Module -J197-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- If the control module is being replaced, then select "replace" control module on the Vehicle Diagnostic Tester in Guided Functions .
-- Follow the prompts on the screen.
-- Switch off the ignition.

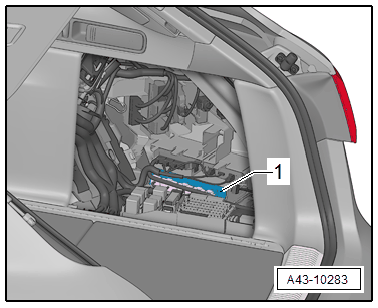

-- Remove the right luggage compartment storage compartment.
-- Loosen the relay and fuse panel and place sideways.

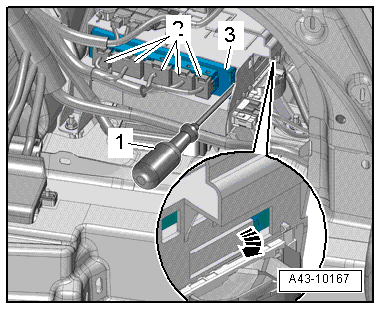

-- Disconnect the connectors -2-.
-- Open the releases on the left and right side with a long screwdriver -1- in direction of -arrow- and remove the Level Control System Control Module -J197- -3-.
