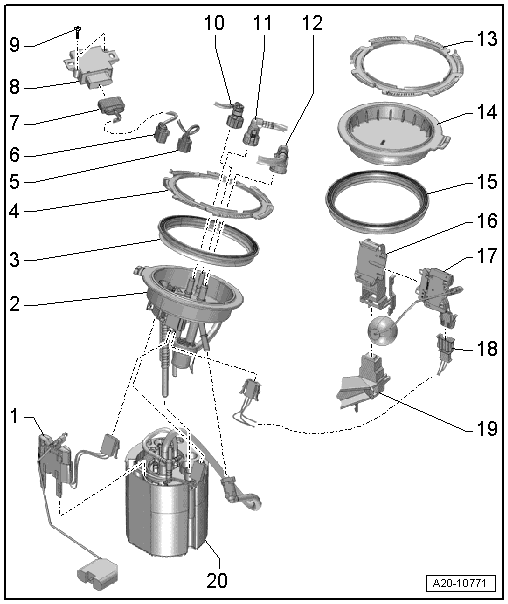

Overview - Fuel Delivery Unit/Fuel Level Sensor
WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Level Sensor -G-
- For checking the resistance values. Refer to Fuel Level Sensor -G-, CHECKING .
- Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING .
- Locking Flange
- Seal
- Always replace
- Install dry
- Locking Ring
- 110 Nm
- Loosen and tighten using the :T10202
- Connector
- For Fuel Level Sensor -G- and Fuel Level Sensor 2 -G169-
- Connector
- For Transfer Fuel Pump -G6-
- Connector
- For the Fuel Pump Control Module -J538-
- Fuel Pump Control Module -J538-
- Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
- Checking in Guided Functions . Refer to Vehicle Diagnostic Tester
- Bolt
- 1.6 Nm
- Fuel Line to Parking Heater Metering Pump
- Equipment levels
- Do not kink
- Clipped to the fuel tank
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Fuel Return Line
- From engine
- Do not kink
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Clipped to the fuel tank
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Fuel Supply Line
- To fuel filter
- Do not kink
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Clipped to the fuel tank
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Locking Ring
- 110 Nm
- Loosen and tighten using the :T10202
- Locking Flange
- Seal
- Always replace
- Install dry
- Bracket
- For Fuel Level Sensor 2 -G169-
- Fuel Level Sensor 2 -G169-
- For checking the resistance values. Refer to Fuel Level Sensor 2 -G169-, CHECKING .
- Refer to Fuel Level Sensor 2 -G169-, REMOVING AND INSTALLING .
- Wire
- For Fuel Level Sensor 2 -G169-
- Inside the fuel tank
- Disconnect both lines and connectors as close as possible at the last attachment to replace the electric wire. Route the new line parallel to the old one. The old line remains inside the fuel tank.
- Mount
- Welded to the fuel tank
- Fuel Delivery Unit
- With Transfer Fuel Pump -G6-
- Check the electric fuel pump in Guided Fault Finding using the Vehicle Diagnostic Tester.
- Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- Fill the fuel tank with at least five liters of fuel after installing
-- Tighten the cover screws -arrows- to 1.5 Nm.
